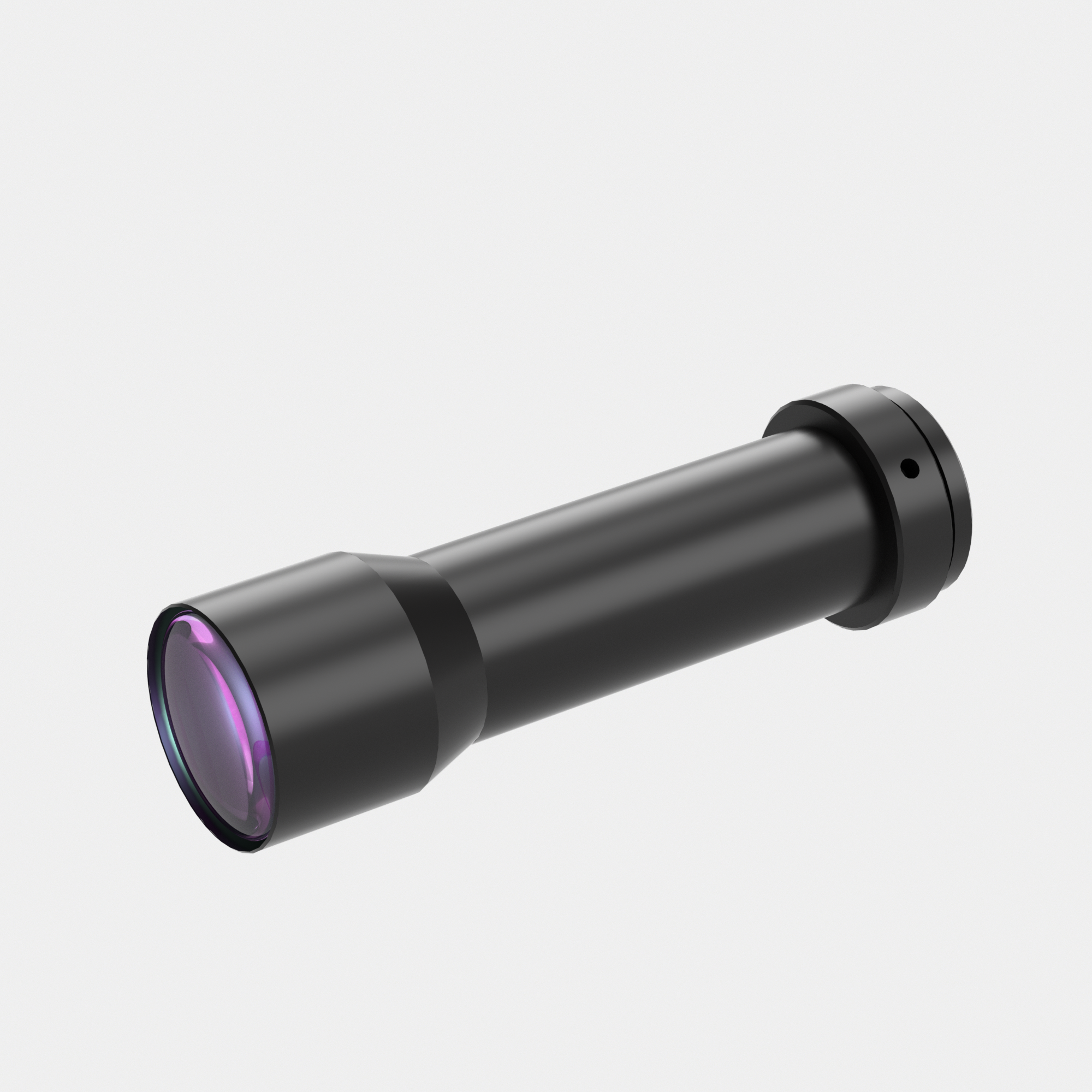

| Model NO. | WH025-330A-118 | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Magnification(x) | 0.25 | Working Distance(mm) | 330 | ||||
| NA | 0.0091 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 14.4 | ||||
| MTF30 (lp/mm) | 60 | Object Resolution(μm) | 36.8 | ||||
| Depth of Field(mm) | 18.4 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 90.4 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 6.5 | ||||
| Filter Screw Size | M25x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 25.6x19.2 | ||||||
| 1/1.8"(7.13x5.37) | 28.5x21.5 | ||||||
