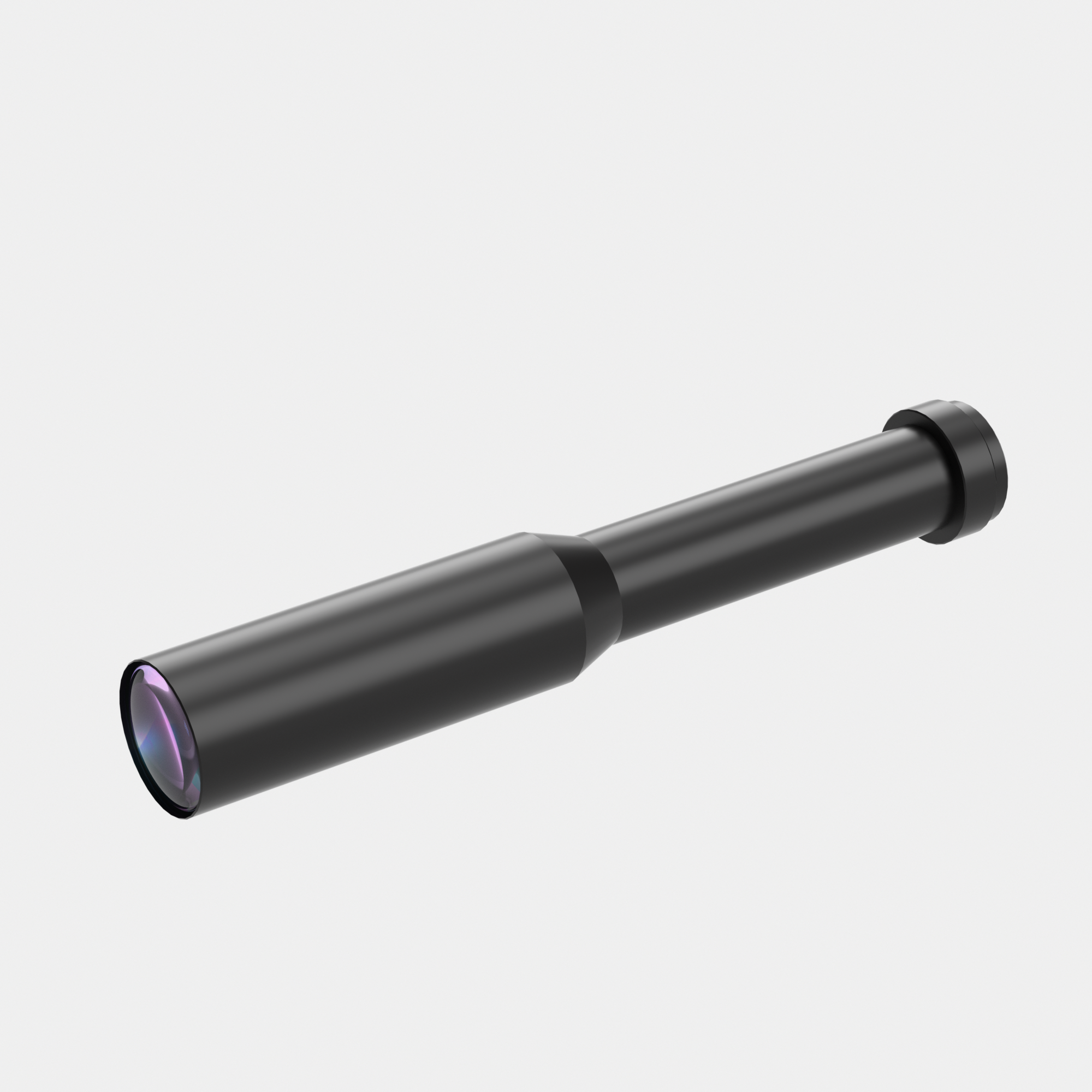

| Model NO. | WH07-480A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
| Magnification(x) | 0.7 | Working Distance(mm) | 480 | ||||
| NA | 0.0195 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 18 | ||||
| MTF30 (lp/mm) | 50 | Object Resolution(μm) | 17.2 | ||||
| Depth of Field(mm) | 2.9 | Distortion Typical(% max) | 0.2 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 180.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.4 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 9.1x6.9 | ||||||
| 1/1.8"(7.13x5.37) | 10.2x7.7 | ||||||
| 1/1.7"(7.4x5.6) | 10.6x8 | ||||||
