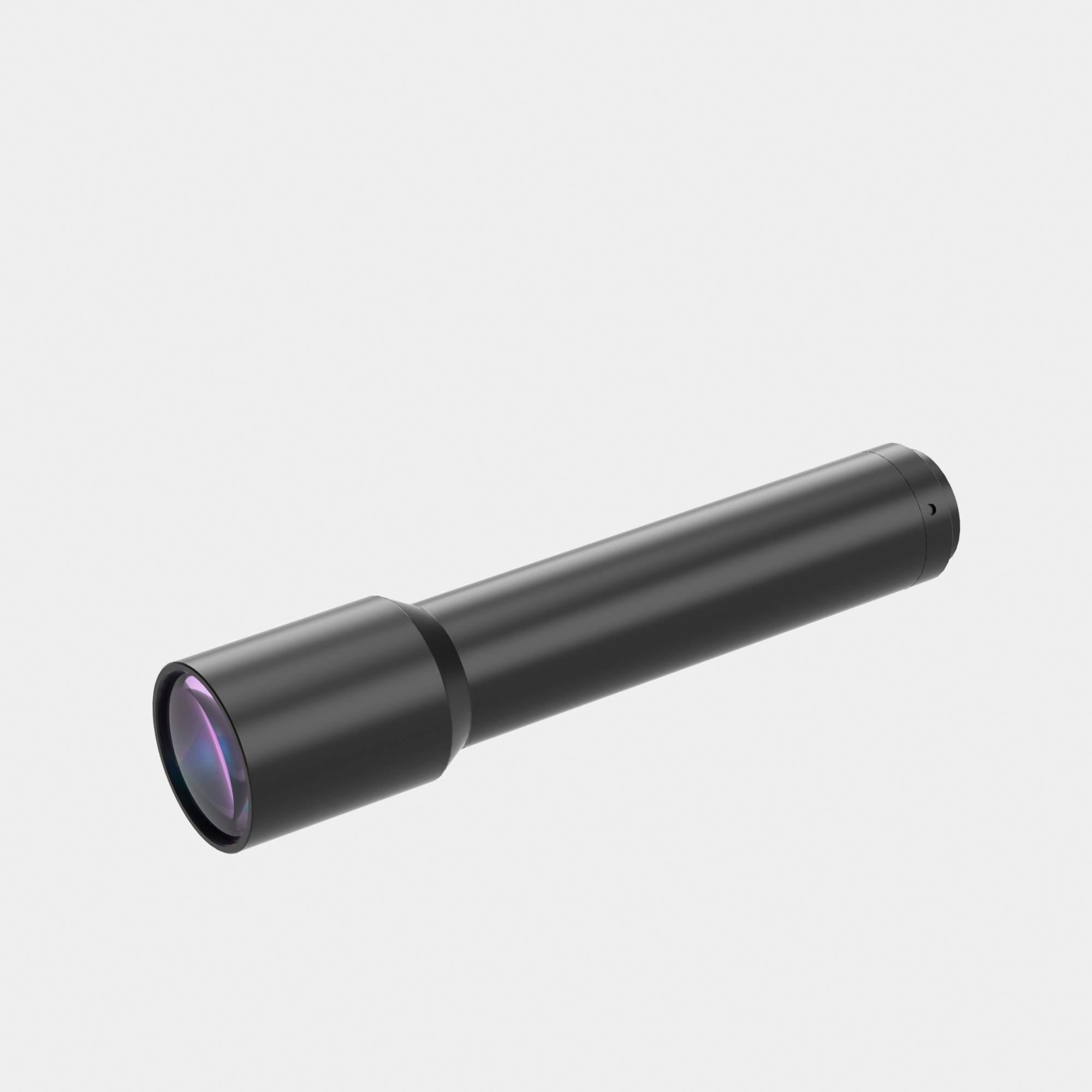

| Model NO. | WH05-233A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 233 | ||||
| NA | 0.0356 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | 114 | Object Resolution(μm) | 9.4 | ||||
| Depth of Field(mm) | 2.2 | Distortion Typical(% max) | 0.03 | ||||
| Telecentricity Typical (°max) | 1.5 | Length (mm) | 169.2 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | / | ||||||
