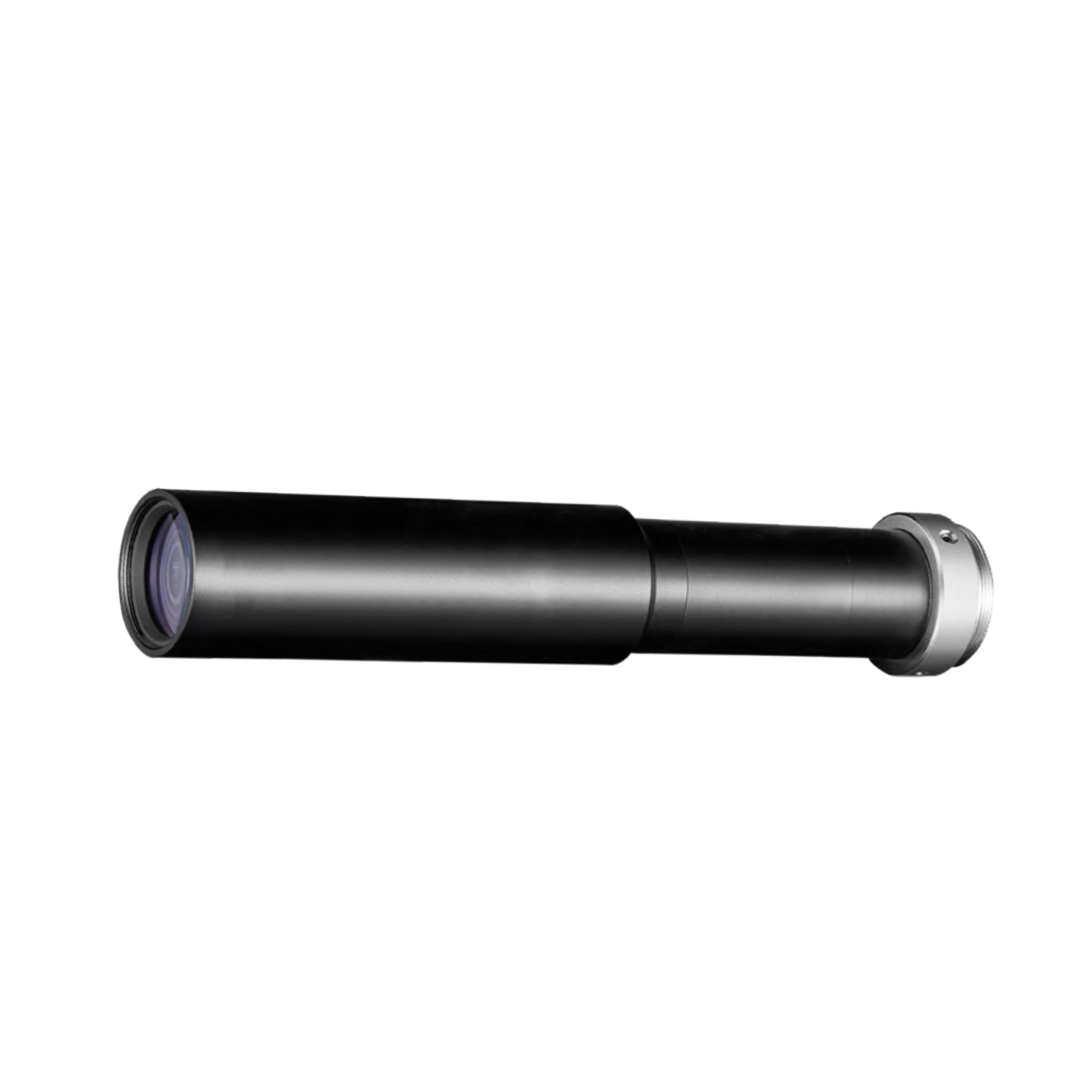

| Model NO. | WH04-650A-117 | Image Circle Diameter (Φmm) | 9.5(1/1.7'') | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 650 | ||||
| NA | 0.0174 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 11.4 | ||||
| MTF30 (lp/mm) | 70 | Object Resolution(μm) | 19.2 | ||||
| Depth of Field(mm) | 5.7 | Distortion Typical(% max) | 0.03 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 294.8 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.4 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.7"(7.53×5.64) | 18.8×14.1 | ||||||
