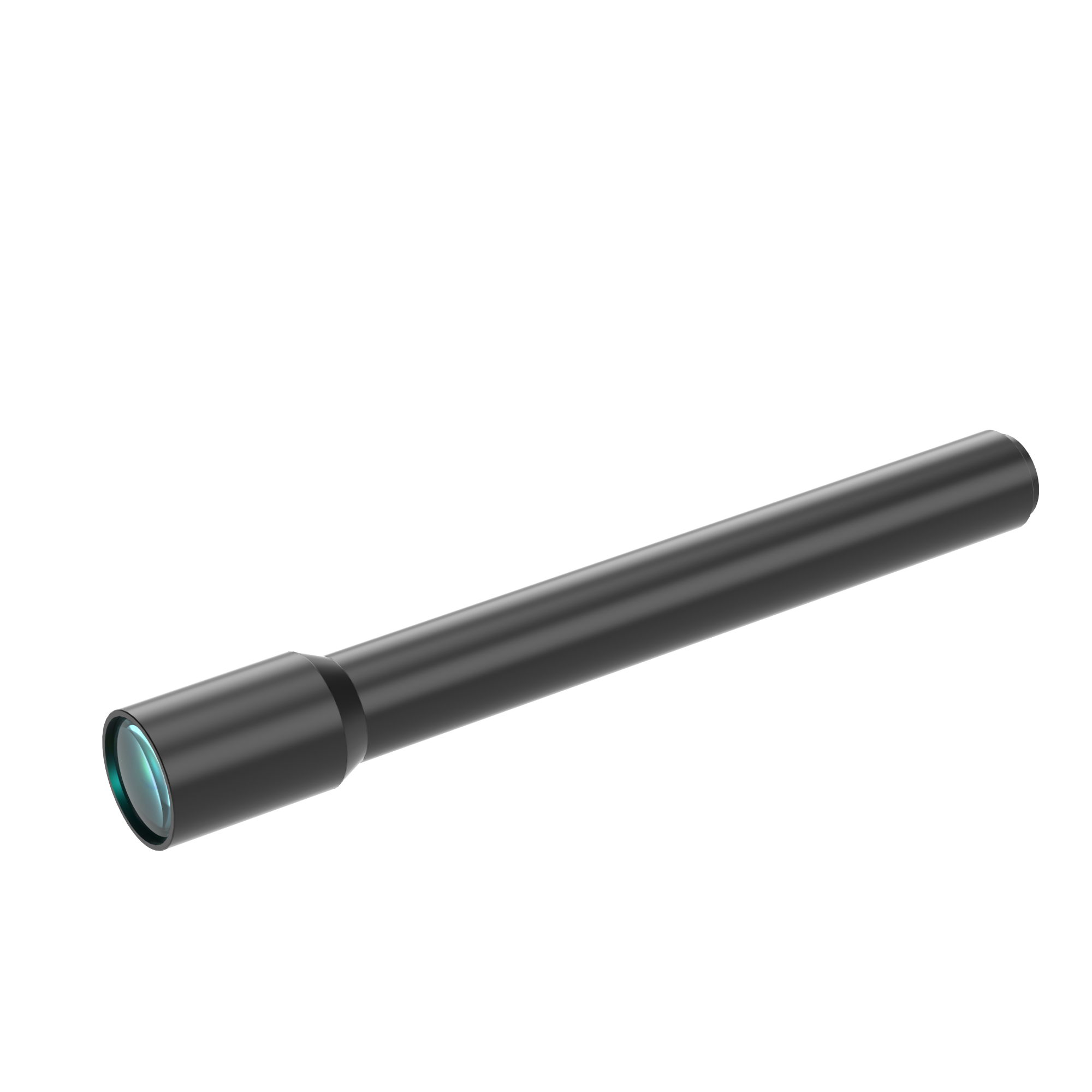

| Model NO. | WH04-550A-117IR | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 550 | ||||
| NA | 0.0201 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 65 | Object Resolution(μm) | 25.8 | ||||
| Depth of Field(mm) | 5 | Distortion Typical(% max) | 0.01 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 281.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.2 | ||||
| Filter Screw Size | M35x0.5 | ||||||
