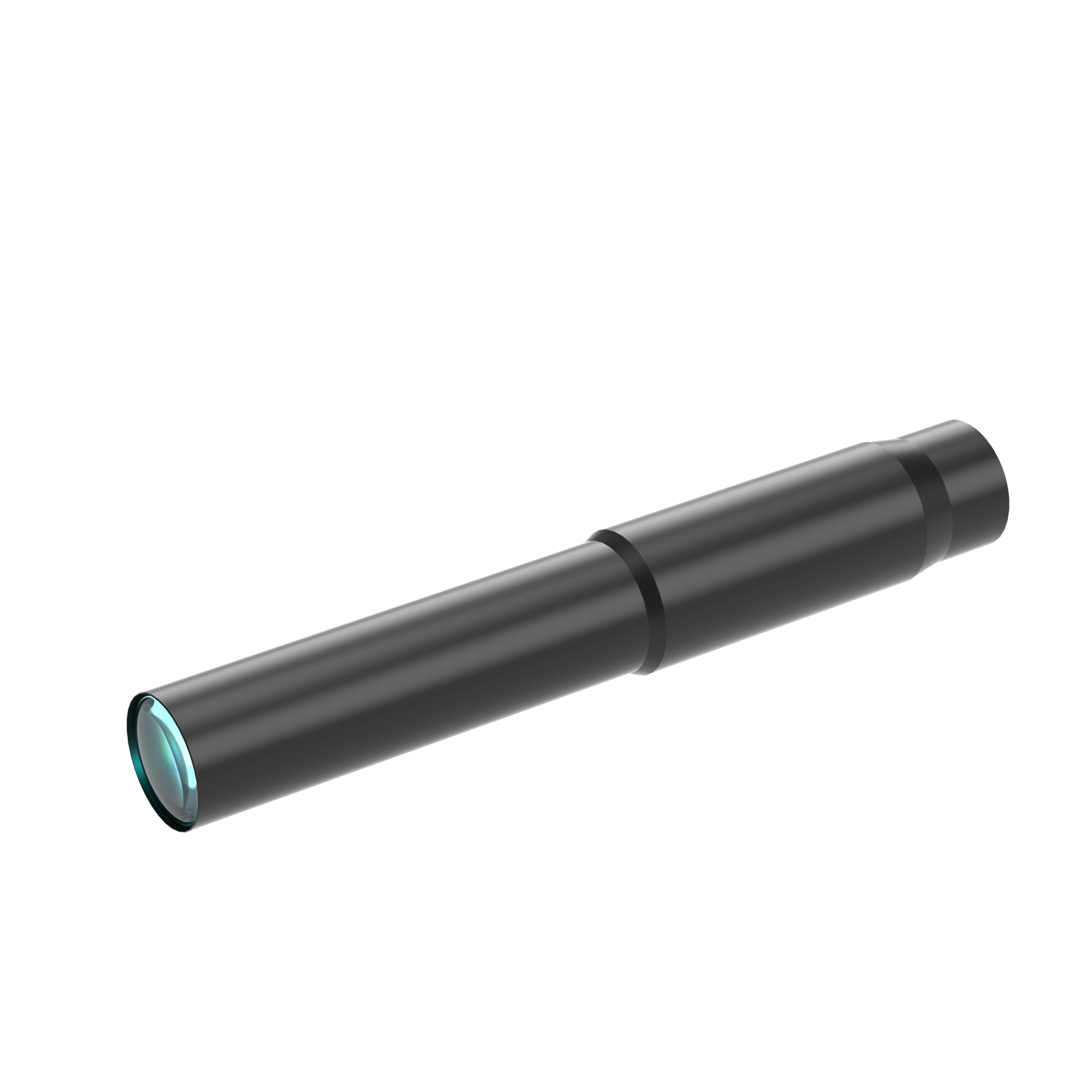

| Model NO. | WH0385-485A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
| Magnification(x) | 0.385 | Working Distance(mm) | 485 | ||||
| NA | 0.0167 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 11.5 | ||||
| MTF30 (lp/mm) | 85 | Object Resolution(μm) | 20.1 | ||||
| Depth of Field(mm) | 6.2 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 265.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.7"(7.44×5.6) | 19.32×14.54 | ||||||
