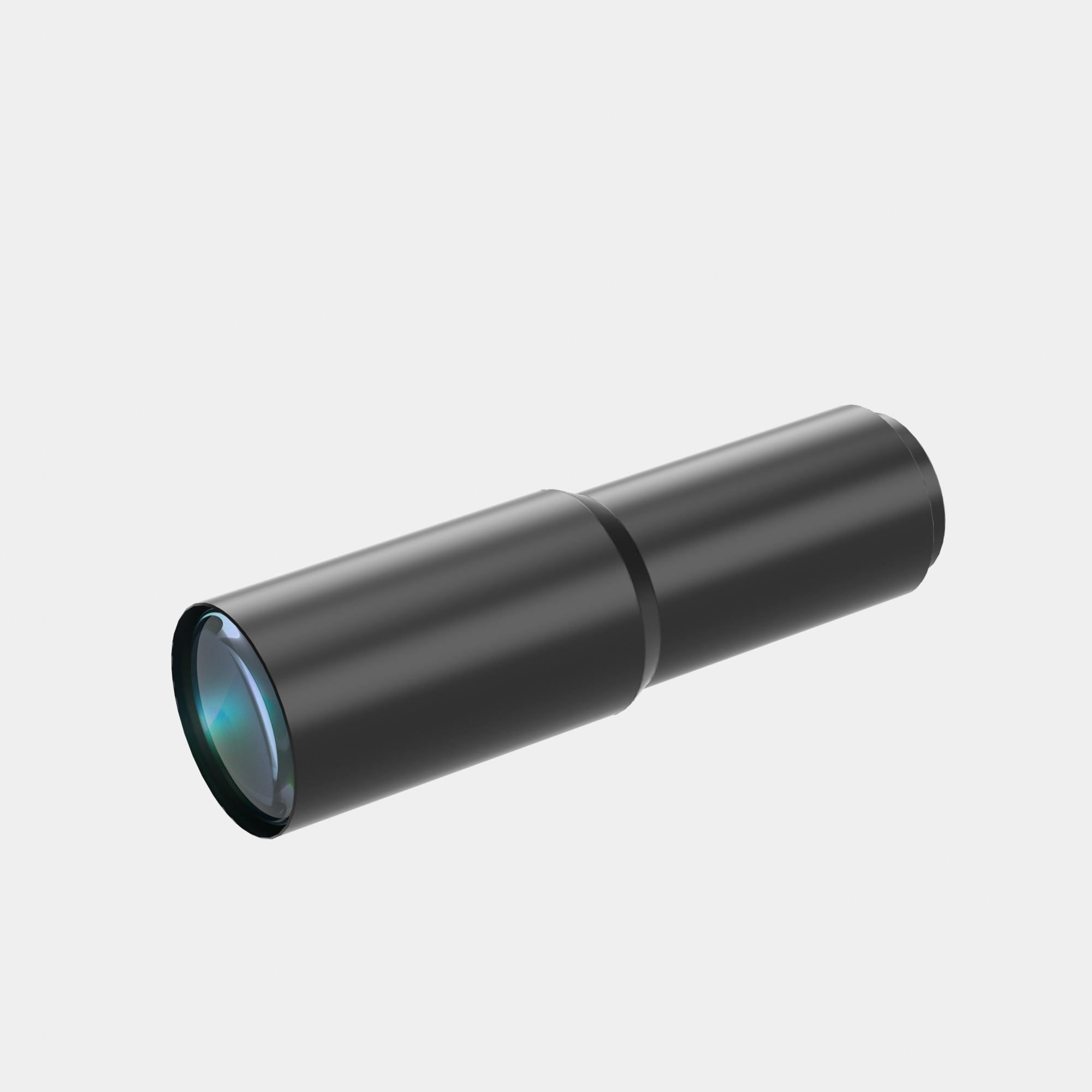

| Model NO. | WH018-630A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.18 | Working Distance(mm) | 630 | ||||
| NA | 0.016 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 5.6 | ||||
| MTF30 (lp/mm) | 162 | Object Resolution(μm) | 21 | ||||
| Depth of Field(mm) | 13.8 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 110.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
| Filter Screw Size | M32x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/2"(6.4x4.8) | 35.6x26.7 | ||||||
| 1/1.8"(7.13x5.37) | 39.6x29.8 | ||||||
| 2/3"(8.45x7.1) | 46.9x39.4 | ||||||
| 1"(12.43x9.83) | 69.1x54.6 | ||||||
