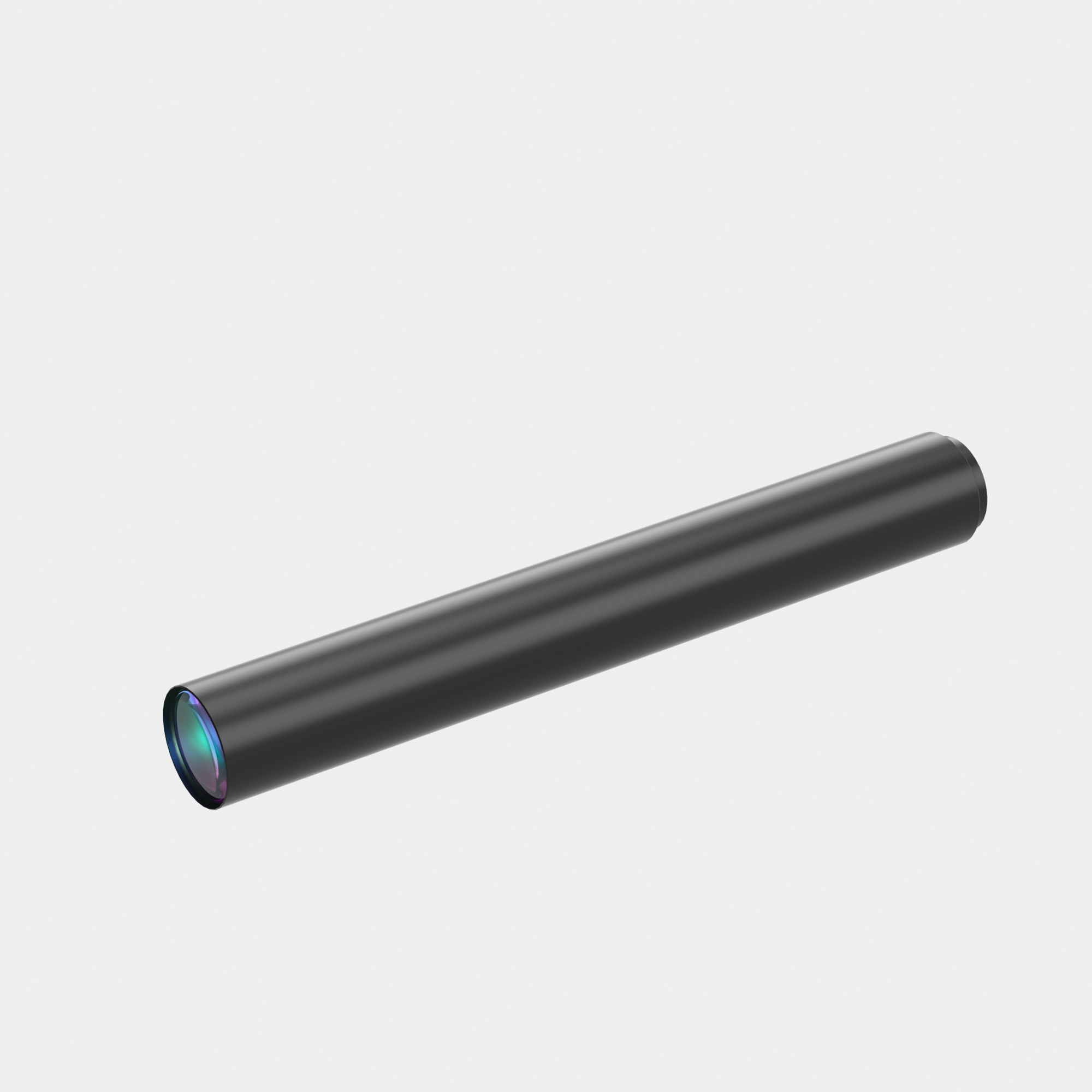

1" 0.71X Industrial Lenses | WH071-260A-110 COOLENS®
$407.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WH071-260A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.71 | Working Distance(mm) | 260 | ||||
| NA | 0.0208 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 17 | ||||
| MTF30 (lp/mm) | 57 | Object Resolution(μm) | 16.1 | ||||
| Depth of Field(mm) | 2.7 | Distortion Typical(% max) | 0.25 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 219.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 9.0x6.8 | ||||||
| 1/1.8"(7.13x5.37) | 10.0x7.6 | ||||||
| 2/3"(8.8x6.6) | 12.4x9.3 | ||||||
| 1"(12.43x9.83) | 17.5x13.8 | ||||||
Dimensions
Naming Rule
