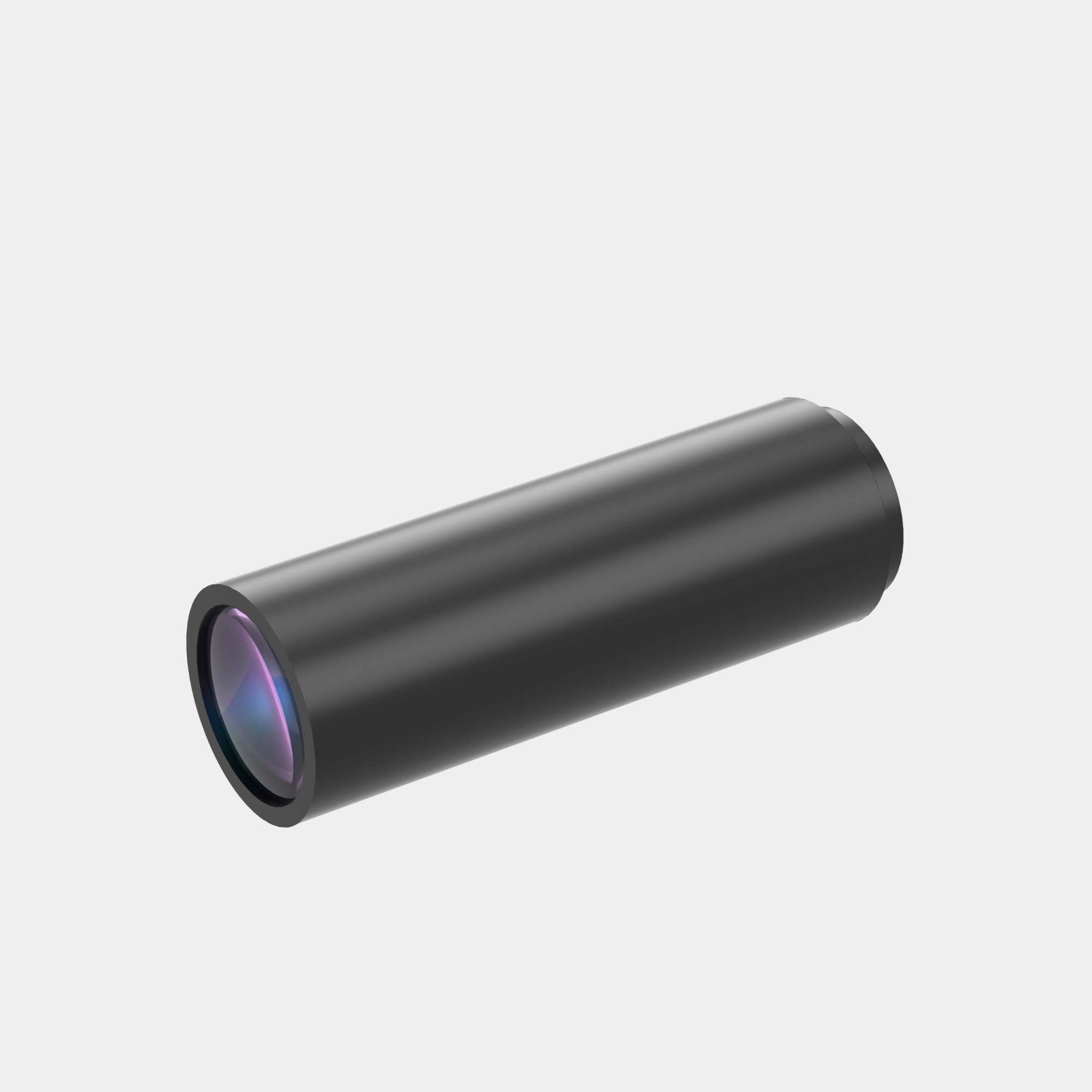

| Model NO. | WH03-216A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 216 | ||||
| NA | 0.0188 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 8 | ||||
| MTF30 (lp/mm) | 100 | Object Resolution(μm) | 17.9 | ||||
| Depth of Field(mm) | 7.1 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 83.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.4 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 2/3"(8.45×7.1) | 28.2×23.7 | ||||||
| 1"(12.43x9.83) | 41.4x32.8 | ||||||
