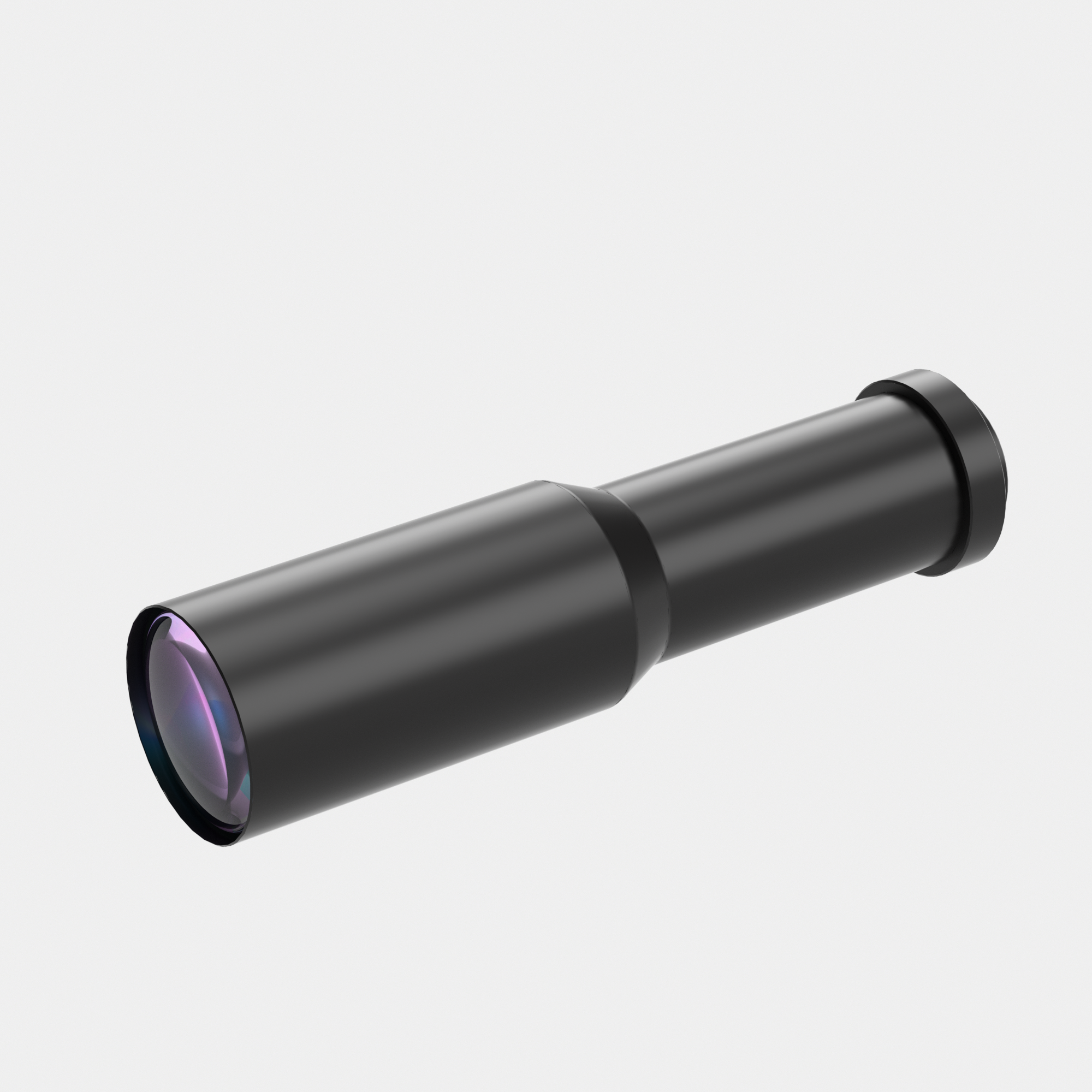

| Model NO. | WH025-465A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.25 | Working Distance(mm) | 465 | ||||
| NA | 0.0125 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 80 | Object Resolution(μm) | 26.9 | ||||
| Depth of Field(mm) | 12.8 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 144.2 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 7.5 | ||||
| Filter Screw Size | M35x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/1.8"(7.13×5.37) | 28.5×21.5 | ||||||
| 2/3"(8.8×6.6) | 35.2×26.4 | ||||||
| 1"(11.26×11.26) | 45.0×45.0 | ||||||
| 4/3"(17.86×14.32) | 71.4×57.3 | ||||||
