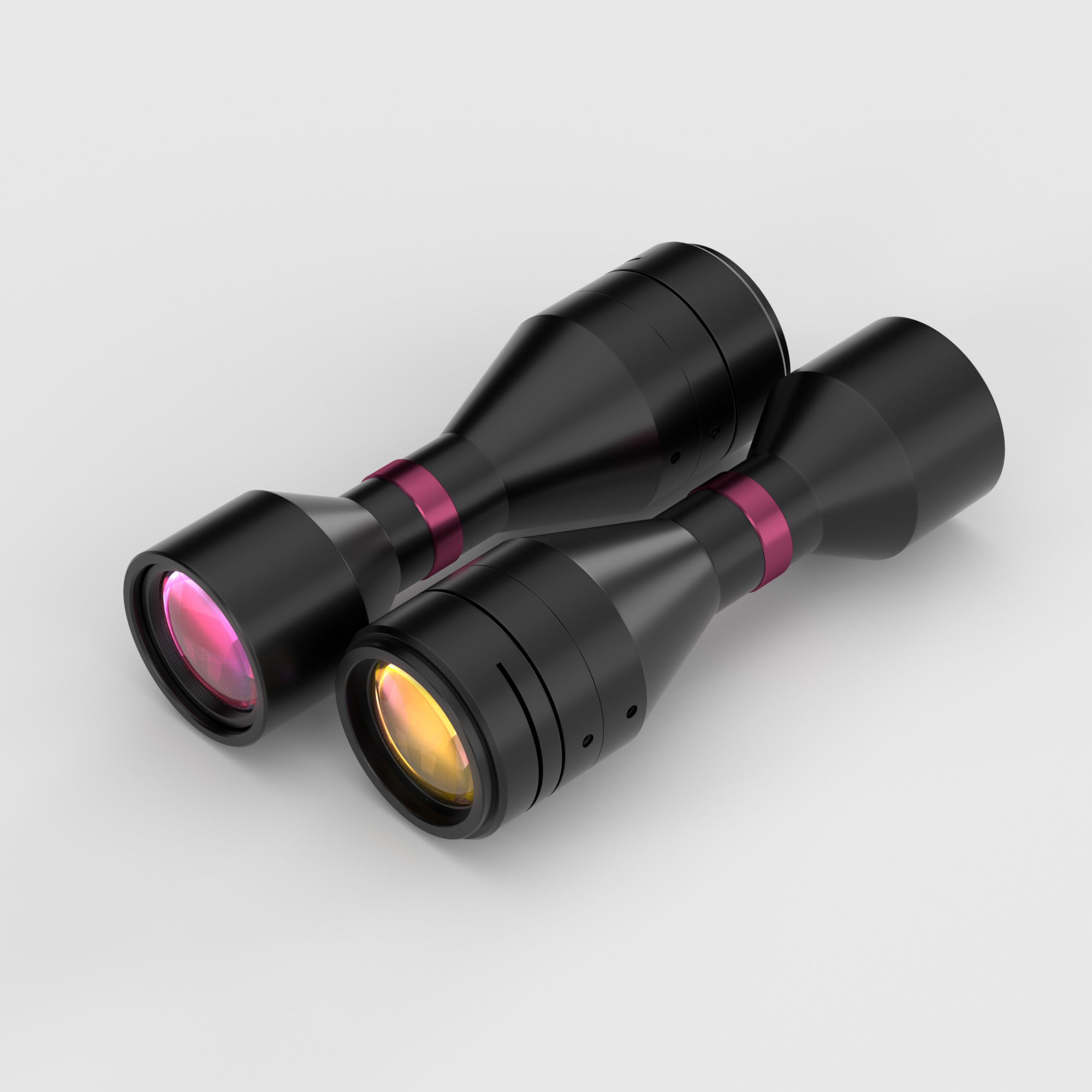

71M 0.929X Bi-Telecentric Lenses | DTCM71M-42-M58-AL COOLENS®
$2,298.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM71M-42-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
| Magnification(x) | 0.929 | Working Distance(mm) | 118±3 | ||||
| NA | 0.0304 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 42 | ||||
| Best Aperture(f/#) | 15.3 | MTF30 (lp/mm) | >55 | ||||
| Depth of Field(mm) | ±0.9@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 357±3 | ||||
| Length (mm) | 226.7 | Weight(kg) | 1 | ||||
| Measured Depth of Field (mm) | 1.5 | Filter Screw Size | M56x0.5 | ||||
| Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 33.4x23.4 | |||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-42-xW-y | |||||
| Beam Diameter 42mm | |||||||
Dimensions
Naming Rule
