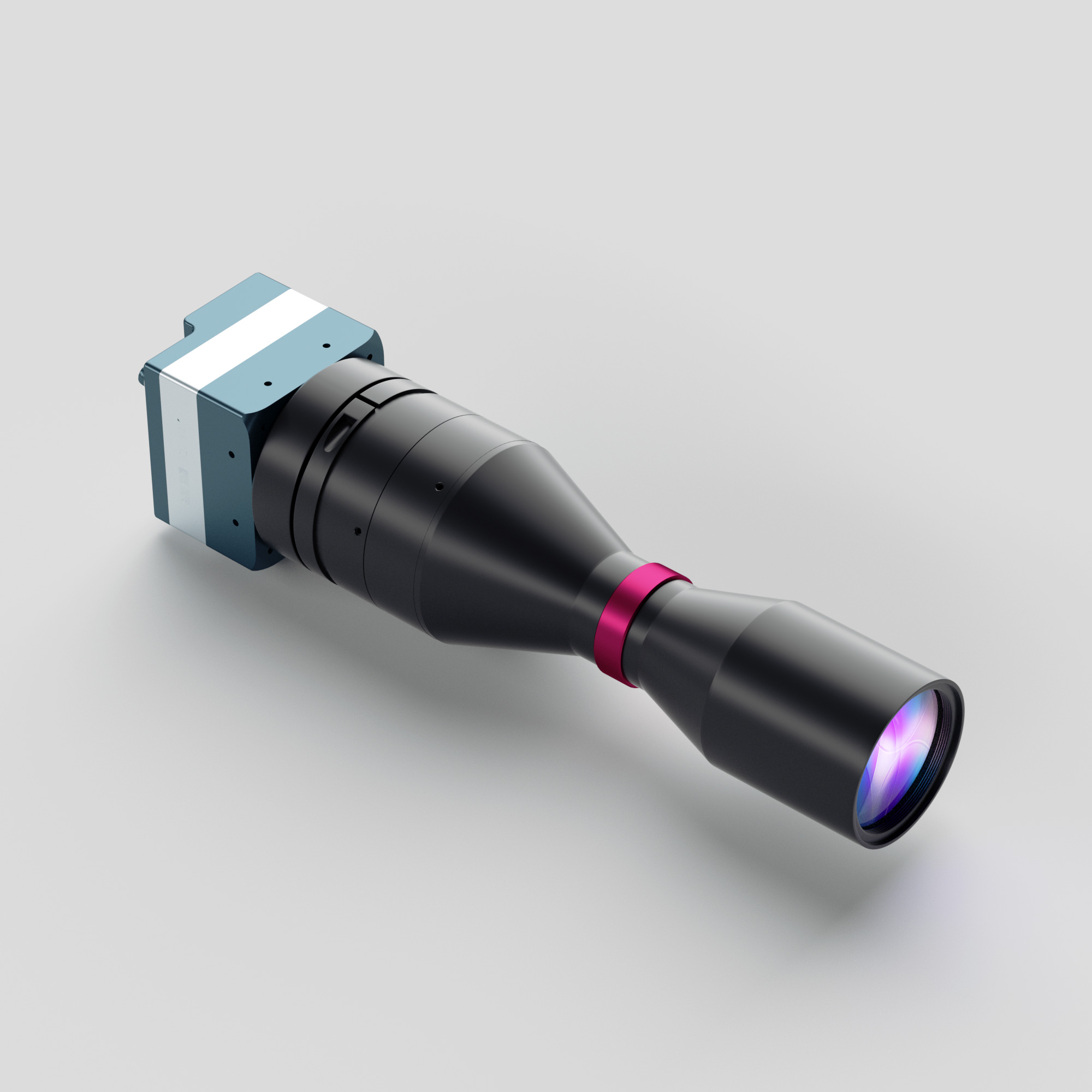

| Model NO. | DTCM210-36-M58-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
| Magnification(x) | 0.917 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0295 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 36 | ||||
| Best Aperture(f/#) | 15.5 | MTF30 (lp/mm) | >50 | ||||
| Depth of Field(mm) | ±0.9@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 347±2 | ||||
| Length (mm) | 225 | Weight(kg) | 1 | ||||
| Measured Depth of Field (mm) | 1.4 | Filter Screw Size | M50x0.5 | ||||
| Field of View (mm × mm) |
2" DALSA 12M (24.58x18.43) | 26.8x20.1 | |||||
| 2" PYTHON 25K (23.04x23.04) | 25.1x25.1 | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-36-xW-y | |||||
| Beam Diameter 36mm | |||||||
