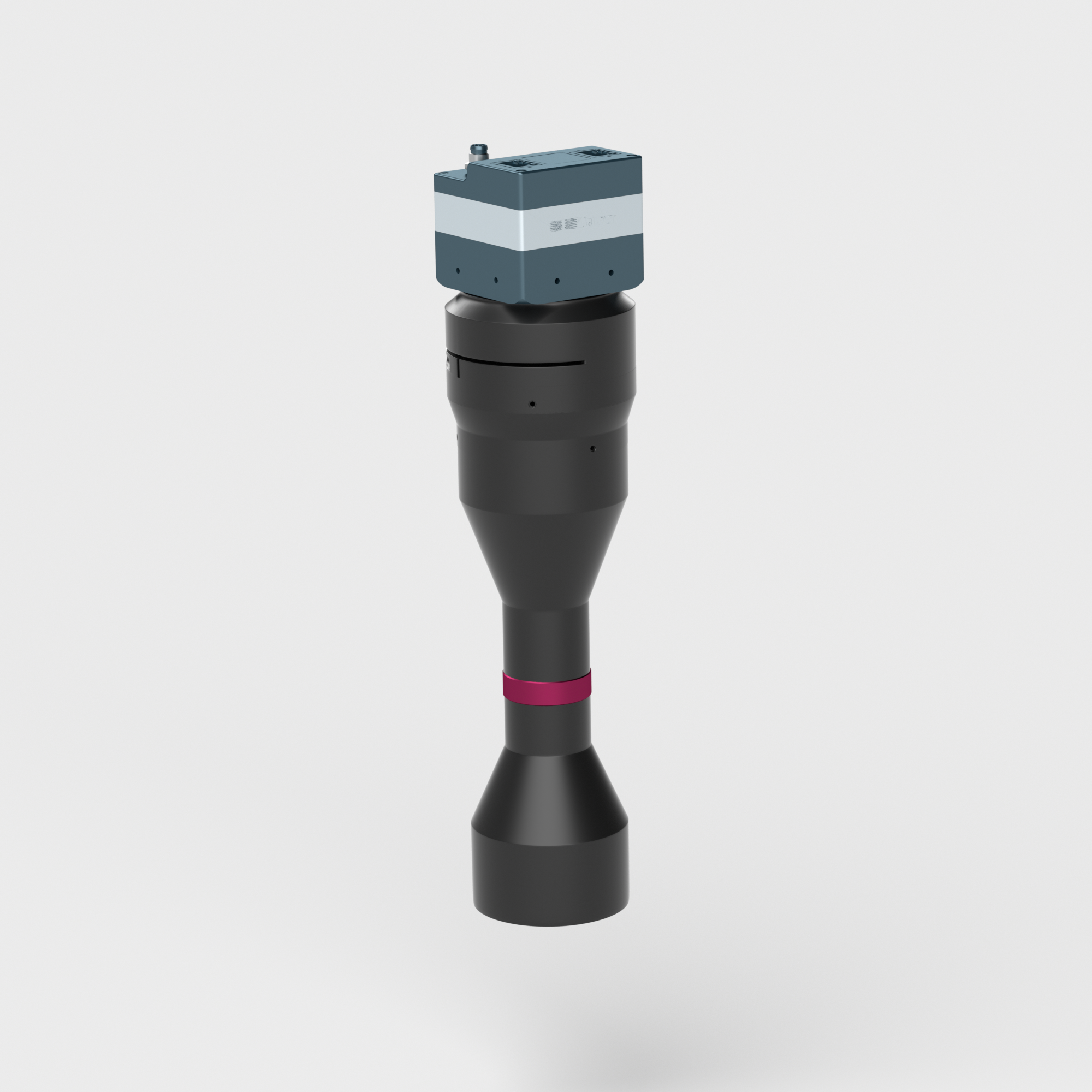

35mm Full 0.908X Bi-Telecentric Lenses | DTCM35FH-48-M58-AL COOLENS®
$2,727.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM35FH-48-M58-AL | Image Circle Diameter (Φmm) | 43.6(35mm Full) | ||||
| Magnification(x) | 0.908 | Working Distance(mm) | 128±3 | ||||
| NA | 0.0266 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 48 | ||||
| Best Aperture(f/#) | 17.1 | MTF30 (lp/mm) | >85 | ||||
| Depth of Field(mm) | ±1.0@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 401±3 | ||||
| Length (mm) | 261.3 | Weight(kg) | 1.2 | ||||
| Measured Depth of Field (mm) | 1.4 | Filter Screw Size | M60x0.5 | ||||
| Field of View (mm × mm) |
CMV50000 (36.43x27.62) | 40.1x30.4 | |||||
| KAI29050/2 (36.17x24.11) 34.8x23.2 | 39.8x26.6 | ||||||
| KAI43142 (36.18x24.12) | 39.8x26.6 | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-48-xW-y | |||||
| Beam Diameter 48mm | |||||||
Dimensions
Naming Rule
