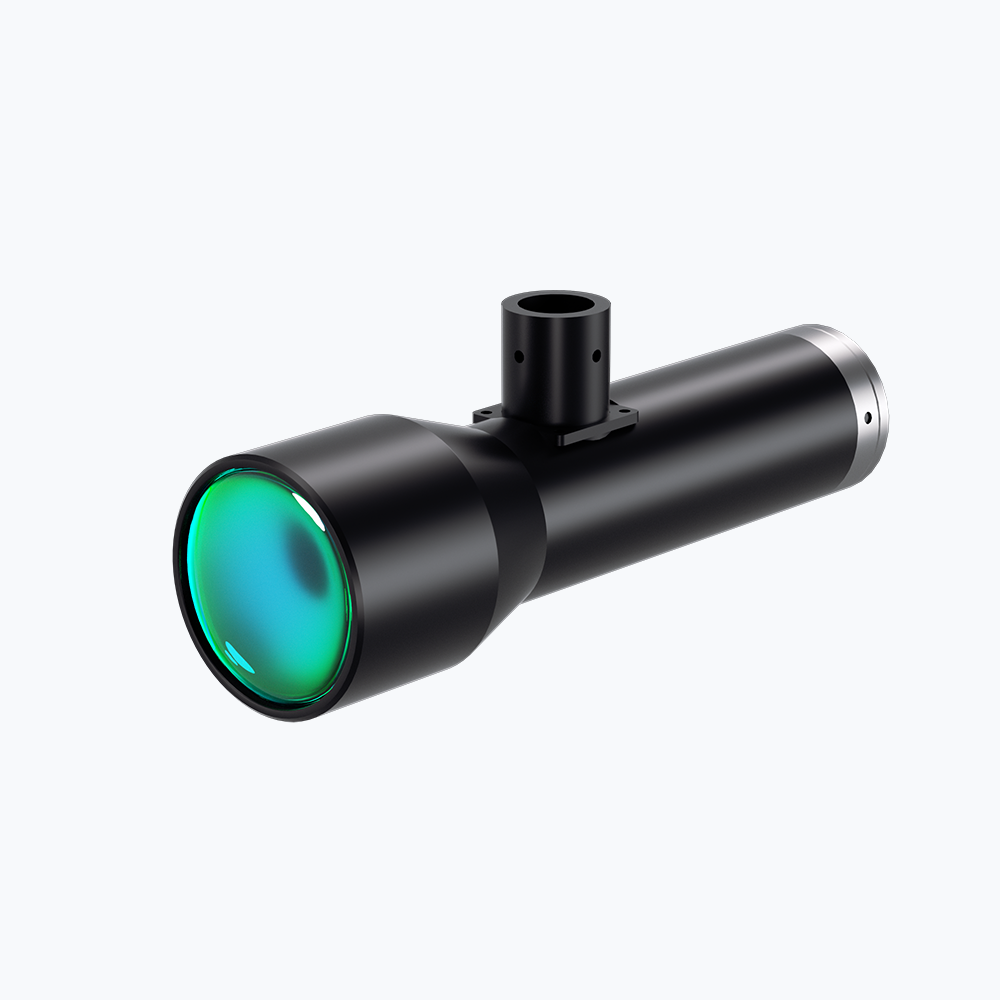

| Model NO. | WWK08-180C-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.800 | Working Distance(mm) | 180±2 | ||||
| NA | 0.0499 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 8 | ||||
| MTF30 (lp/mm) | >108 | Object Resolution(μm) | 6.7 | ||||
| Depth of Field(mm) | ±0.5@F8 | Distortion Typical(% max) | <0.04 | ||||
| Telecentricity Typical (°max) | <0.08 | Length (mm) | 155 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.45 | ||||
| Filter Screw Size | M44x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 16.4x11.0 | ||||||
| 1.1" IMX253 (14.19x10.38) | 17.7x13.0 | ||||||
