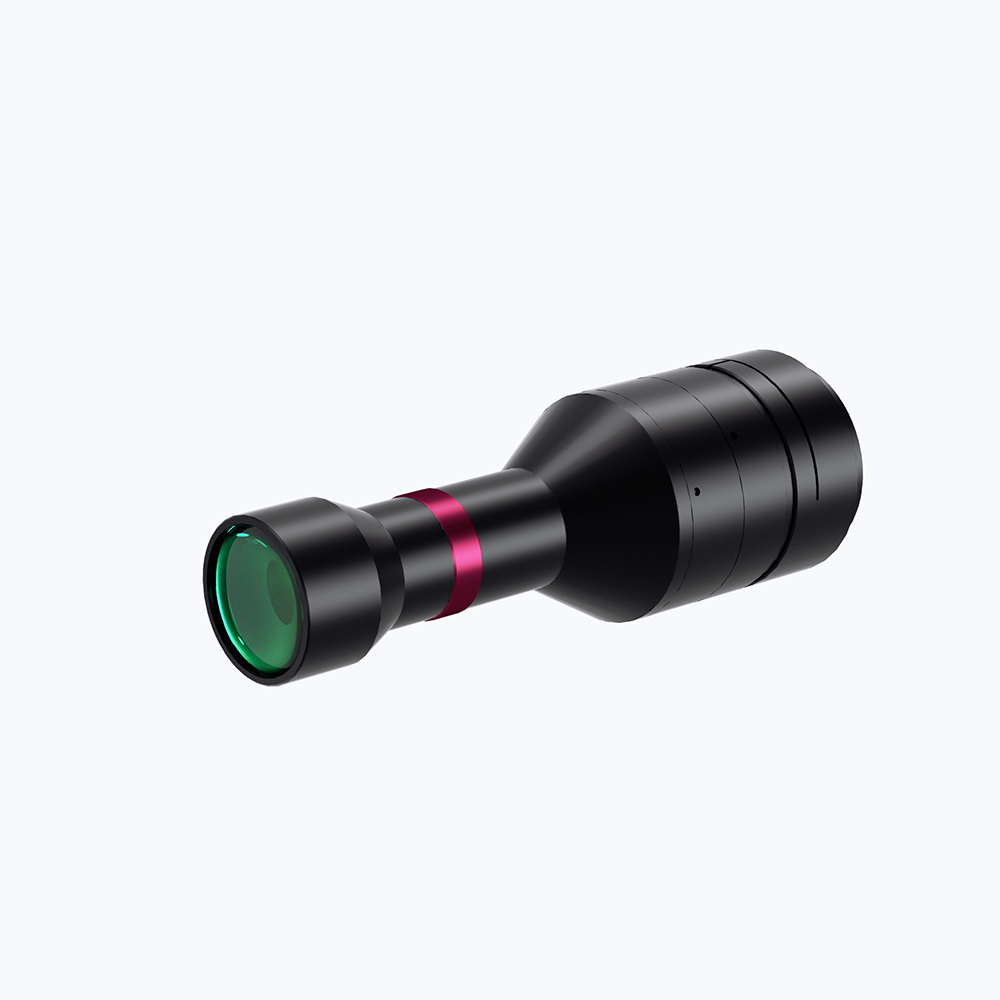

2" 0.737X Telecentric Lenses | DTCA210-44.8-M58-AL COOLENS®
$2,435.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA210-44.8-M58-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
| Magnification(x) | 0.737 | Working Distance(mm) | 90 | ||||
| NA | 0.0469 | Type | Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 44.8 | ||||
| Best Aperture(f/#) | 7.8 | MTF30 (lp/mm) | 90 | ||||
| Object Resolution(μm) | 7.2 | Depth of Field(mm) | 1.1 | ||||
| Distortion Typical(% max) | 0.1 | Telecentricity Typical (°max) | / | ||||
| Length of I/O(mm) | 298 | Length (mm) | 194.2 | ||||
| Weight(kg) | 0.8 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.8 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm × mm) |
2" PYTHON 25K (23.04X23.04) | 31.3x31.3 | |||||
Dimensions
Naming Rule
