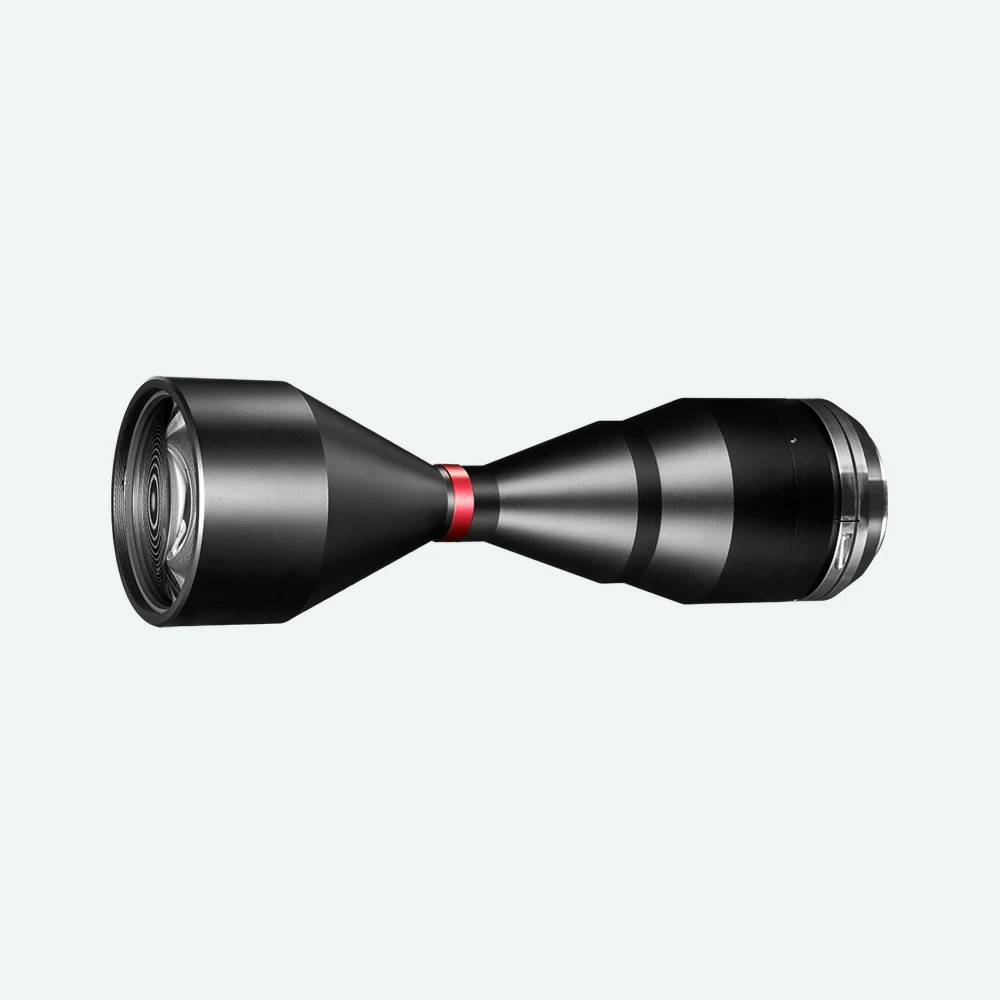

| Model NO. | DTCM16K-80H-AL | Image Circle Diameter (Φmm) | 59(16K) | ||||
| Magnification(x) | 0.738 | Working Distance(mm) | 228±4 | ||||
| NA | 0.0266 | Type | Bi-Telecentric | ||||
| Mount | M72 | Object Field of View(Φmm) | 80 | ||||
| Best Aperture(f/#) | 9.9 | MTF30 (lp/mm) | >85 | ||||
| Depth of Field(mm) | ±1.6@F22 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 580±4 | ||||
| Length (mm) | 340 | Weight(kg) | 3.4 | ||||
| Measured Depth of Field (mm) | 1.2 | Filter Screw Size | M103x0.75 | ||||
| Field of View (mm × mm) |
48.7×29.0 with KAI-47051 | 66.0x39.3 | |||||
| 57.4mm with 16K×3.5/3.53um | 77.8mm | ||||||
| 57.4mm with 8K×7um/7.04um | 77.8mm | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-80-xW-y | |||||
| Beam Diameter 80mm | |||||||
