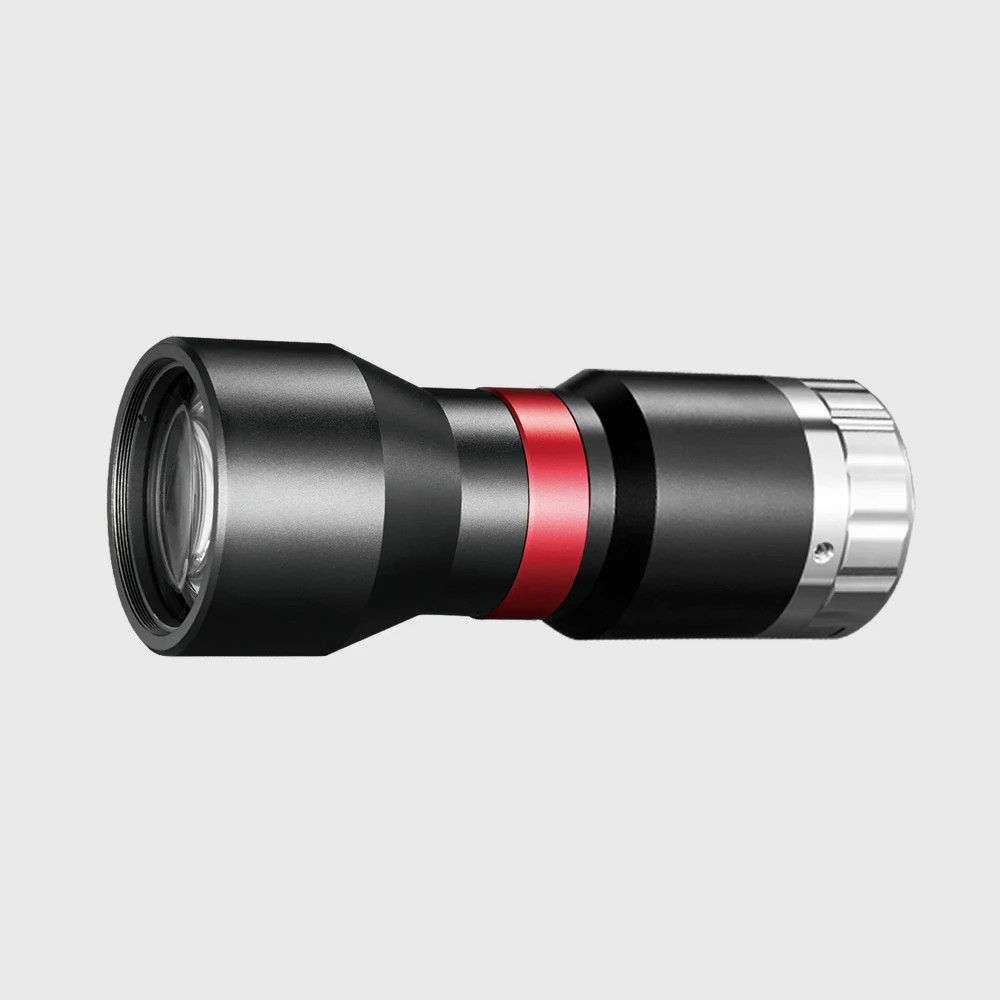

| Model NO. | DTCM111-26-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
| Magnification(x) | 0.0368 | Working Distance(mm) | 73±1 | ||||
| NA | 0.0043 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 26 | ||||
| Best Aperture(f/#) | 9.6 | MTF30 (lp/mm) | >75 | ||||
| Depth of Field(mm) | ±1.6@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 238±1 | ||||
| Length (mm) | 147.7 | Weight(kg) | 0.4 | ||||
| Measured Depth of Field (mm) | 0.8 | Filter Screw Size | M40x0.5 | ||||
| Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 18.5x12.4 | |||||
| 1.1" IMX253 (14.19x10.38) | 20.0x14.7 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-26-xW-y | |||||
| Beam Diameter 26mm | |||||||
