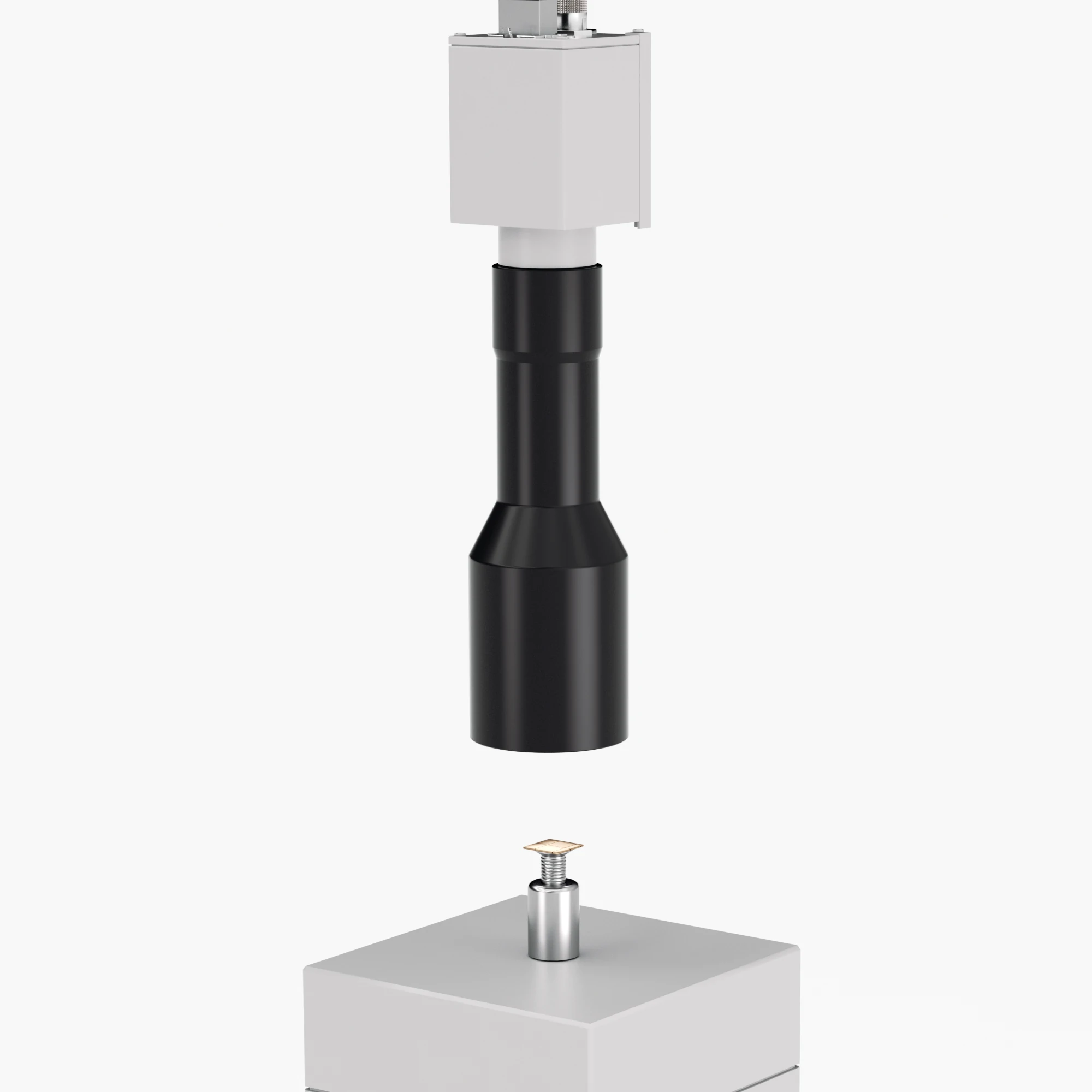

| Model NO. | WWK066-110-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.66 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0471 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | >135 | Object Resolution(μm) | 7.1 | ||||
| Depth of Field(mm) | ±0.6@F7 | Distortion Typical(% max) | <0.02 | ||||
| Telecentricity Typical (°max) | <0.01 | Length (mm) | 129.8 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.6 | ||||
| Filter Screw Size | M42x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/1.8" EV76C570 (7.2x5.4) | 18.8x14.9 | ||||||
| 1/1.7" IMX226 (7.5x5.6) | 21.5x11.4 | ||||||
| 2/3" IMX250/264 (8.45x7.1) | 19.9x13.3 | ||||||
