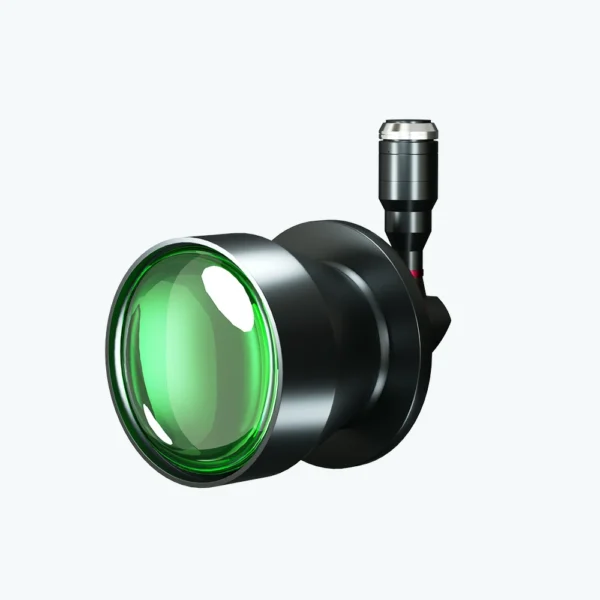

0.656X, 16K M72-Mount 90° Angle Bi-Telecentric Lenses | DTCM16K COOLENS®
$0.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM16K-90-T90-AL | Magnification(x) | 0.656 | ||||
| Object Field of View (Φmm) | 90 | Working Distance (mm) | 208±3 | ||||
| Max Sensor Size (Φmm) | 59 | Best Aperture (F/#) | 15.4 | ||||
| Telecentricity typical (max) (deg) | <0.1 | Distortion typical (max) (%) | <0.1 | ||||
| MTF30 (lp/mm) | >50 | Depth of Field (mm) | ±1.3@F20 | ||||
| Length of I/O (mm) | 595±3 | Mount | M72 | ||||
| Length (mm) | 293.5t | Weight (kg) | 3.1 | ||||
| Field of View (mm × mm) |
48.7×29.0 with KAI-47051 | 74.2x44.2 | |||||
| 57.4mm with 16K×3.5/3.53um | 87.5mm | ||||||
| 57.4mm with 8K×7um/7.04um | 87.5mm | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-90-xW-y | |||||
| Beam Diameter 90mm | |||||||
Dimensions
