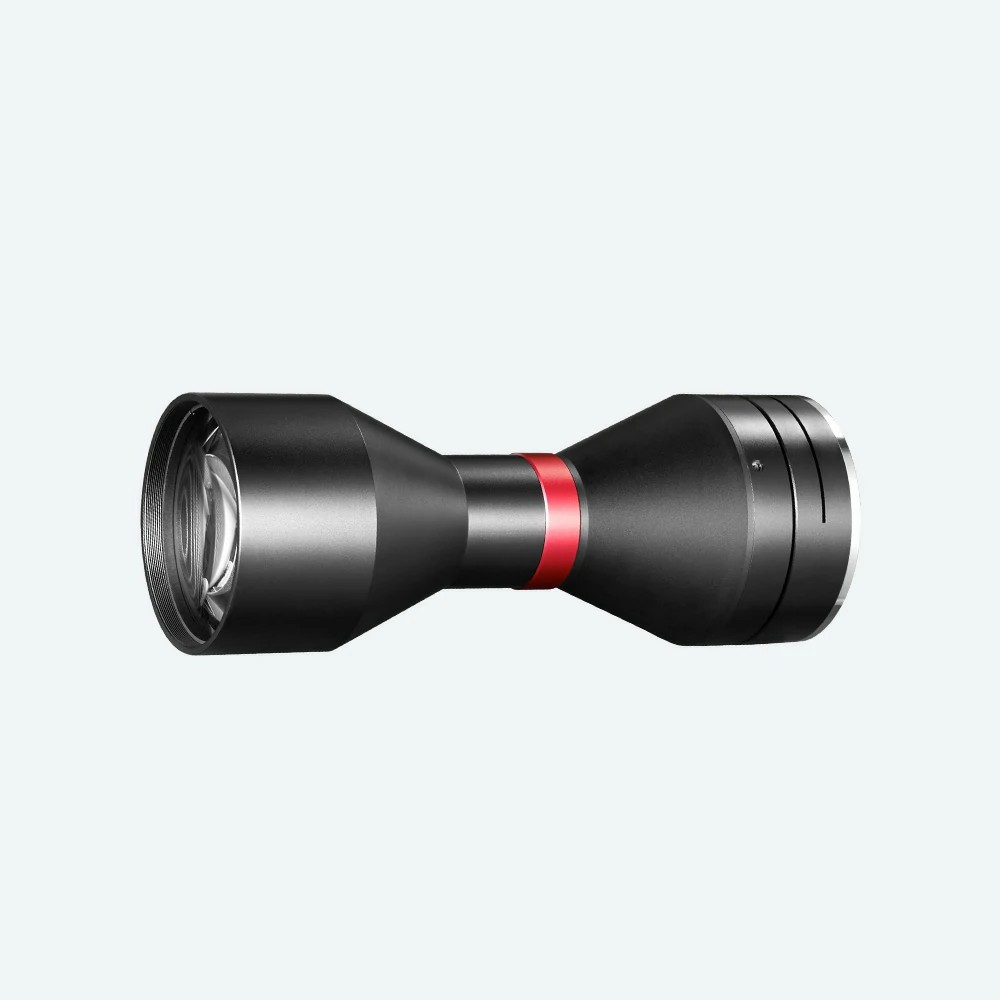

| Model NO. | DTCM175-48-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
| Magnification(x) | 0.604 | Working Distance(mm) | 128±3 | ||||
| NA | 0.0266 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 48 | ||||
| Best Aperture(f/#) | 11.3 | MTF30 (lp/mm) | >70 | ||||
| Depth of Field(mm) | ±2.2@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 348±3 | ||||
| Length (mm) | 208.3 | Weight(kg) | 1 | ||||
| Measured Depth of Field (mm) | 1.4 | Filter Screw Size | M60x0.5 | ||||
| Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 37.3x28.0 | |||||
| 1.75" PYTHON16k (18.43x18.43) | 30.5x30.5 | ||||||
| 1.75" LineScan-4k (28.8mm) | 47.7mm | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-48-xW-y | |||||
| Beam Diameter 48mm | |||||||
