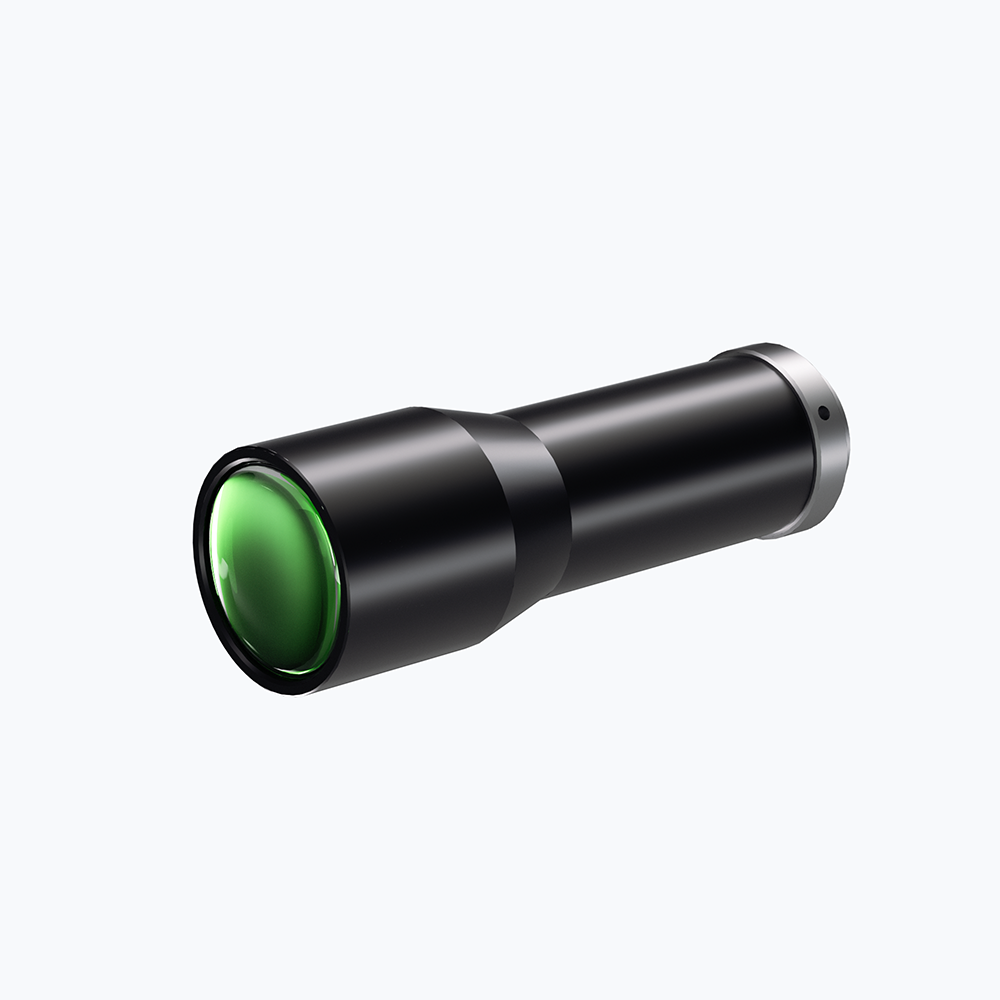

| Model NO. | DTCA230-22L | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 65 | ||||
| NA | 0.0500 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 22 | ||||
| Best Aperture(f/#) | 5 | MTF30 (lp/mm) | >160 | ||||
| Object Resolution(μm) | 6.7 | Depth of Field(mm) | ±0.8@F5.0 | ||||
| Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
| Length of I/O(mm) | 189 | Length (mm) | 106.7 | ||||
| Weight(kg) | 0.2 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.2 | ||||
| Filter Screw Size | M34x0.5 | ||||||
| Field of View (mm × mm) |
1/1.8" EV76C570 (7.2x5.4) | 14.4x10.8 | |||||
| 1/1.7" IMX226 (7.5x5.6) | 15.0x11.2 | ||||||
| 2/3" IMX250/264 (8.45x7.1) | 16.9x14.2 | ||||||
