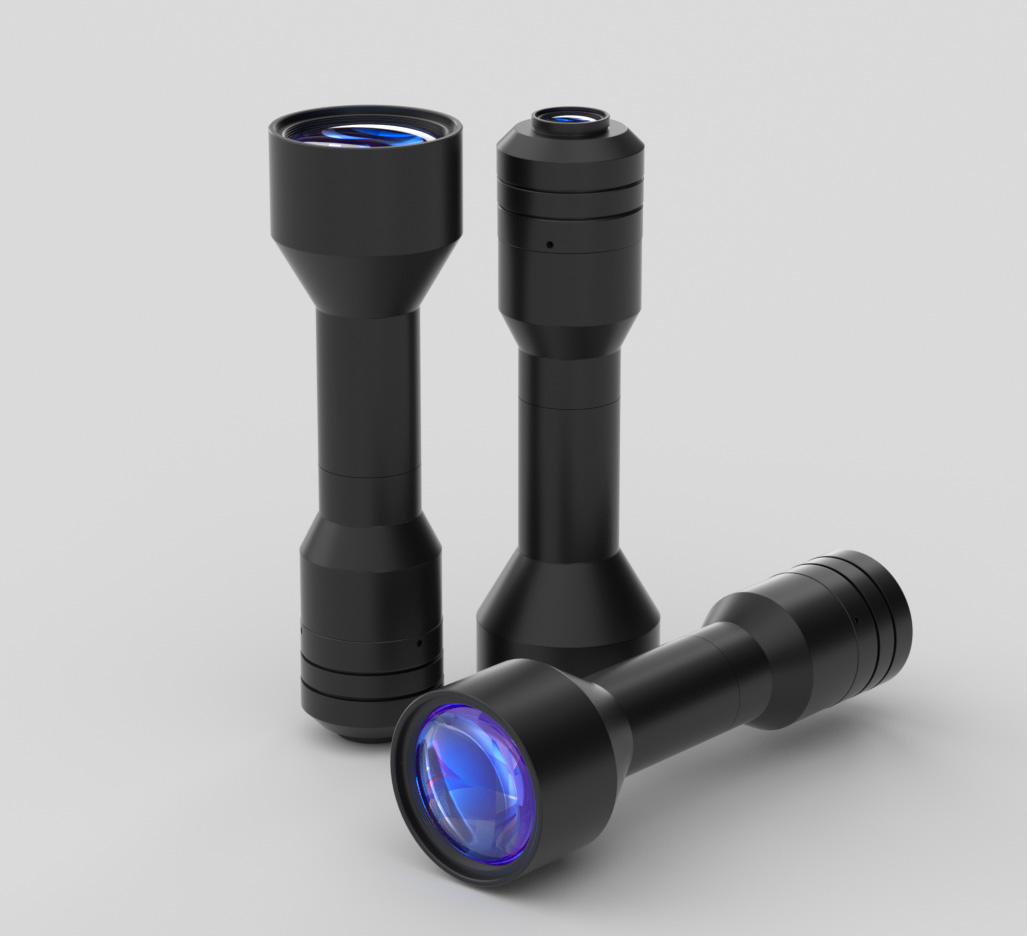

1.1" 0.5X Telecentric Lenses | WWK05-220-111 COOLENS®
$1,200.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWK05-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.500 | Working Distance(mm) | 220±2 | ||||
| NA | 0.0356 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | >140 | Object Resolution(μm) | 9.4 | ||||
| Depth of Field(mm) | ±1.1@F7 | Distortion Typical(% max) | <0.05 | ||||
| Telecentricity Typical (°max) | <0.02 | Length (mm) | 205.4 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | M57x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 26.3x17.5 | ||||||
| 1.1" IMX253 (14.19x10.38) | 28.4x20.8 | ||||||
Dimensions
Naming Rule
