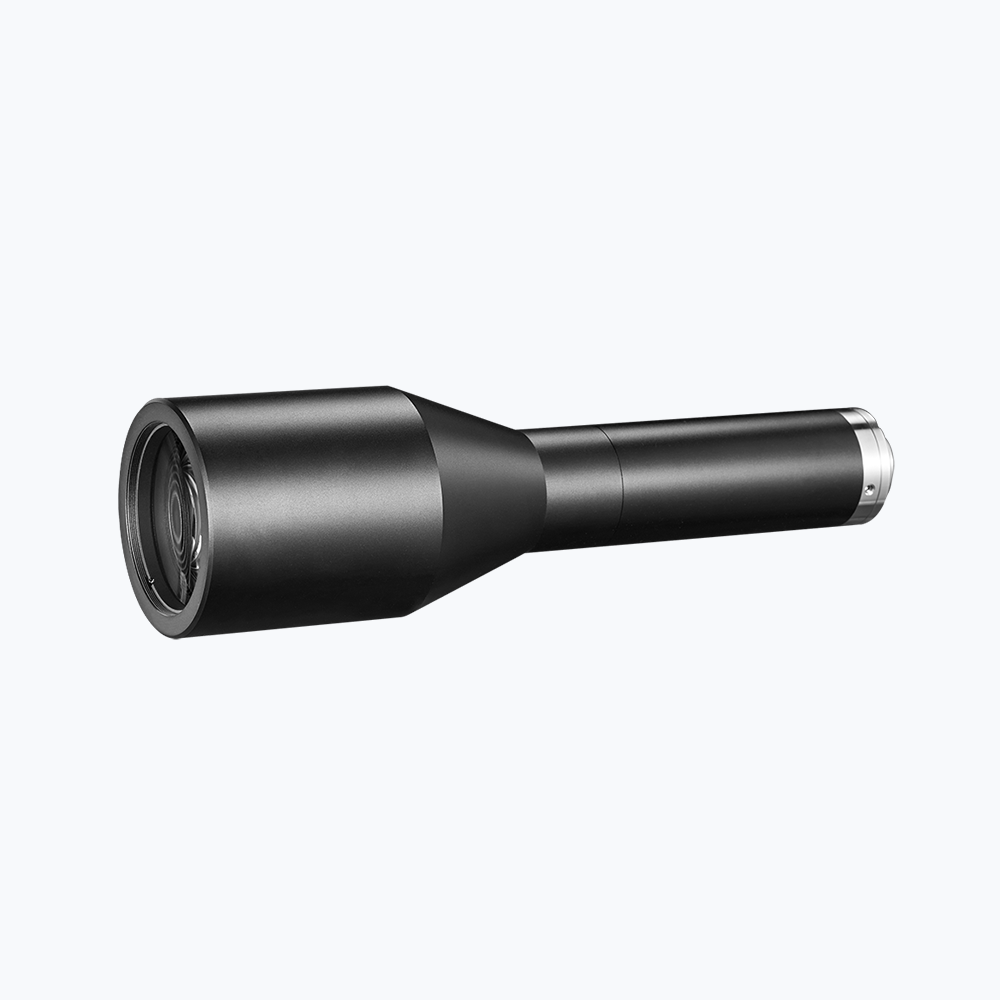

| Model NO. | WWK05-220-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.500 | Working Distance(mm) | 220±2 | ||||
| NA | 0.0310 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 8.0 | ||||
| MTF30 (lp/mm) | >110 | Object Resolution(μm) | 10.8 | ||||
| Depth of Field(mm) | ±1.3@F8 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length (mm) | 205.7 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.2 | ||||
| Filter Screw Size | M50x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1" PYTHON 5000 (12.43x9.83) | 24.9x19.7 | ||||||
| 1" IMX255 (14.19x7.51) | 28.4x15.0 | ||||||
| 1" IMX183 (13.13x8.76) | 26.3x17.5 | ||||||
