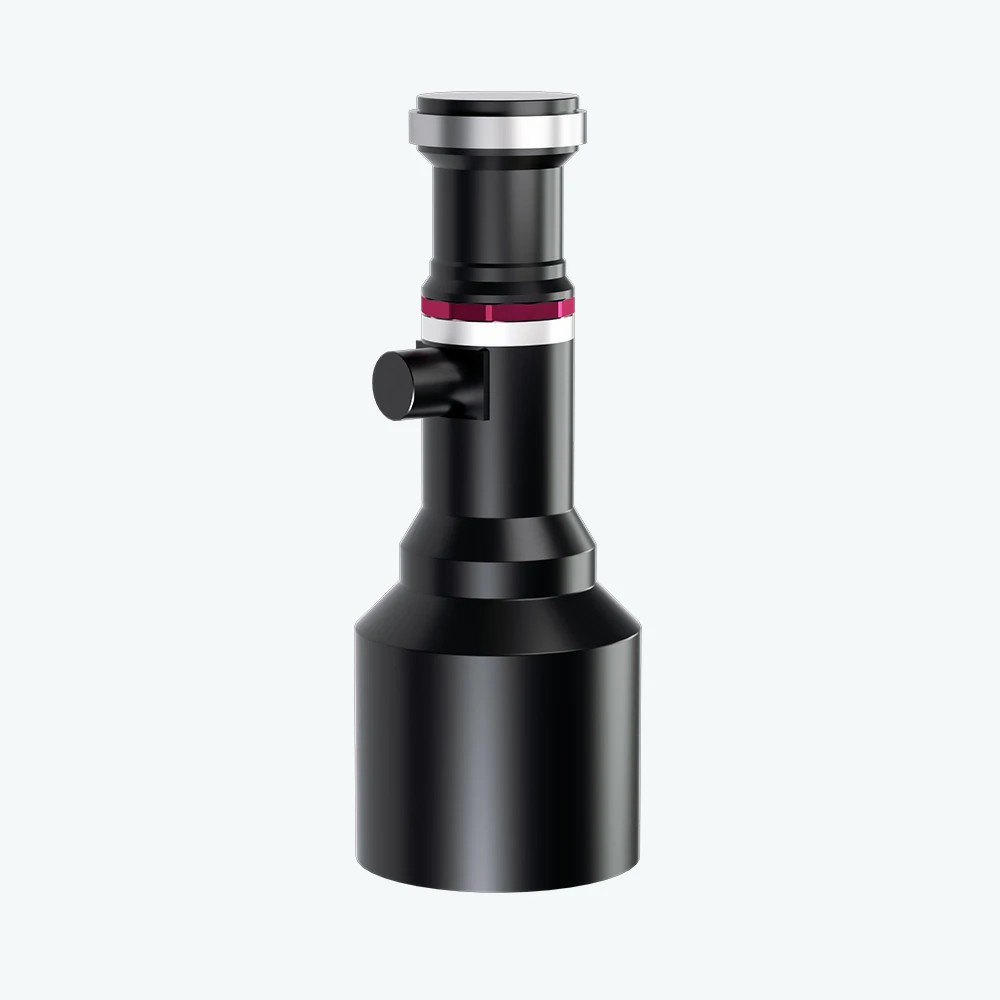

1.75“ 0.55X Telecentric Lenses | DTCA175-51C-G-M58-AL COOLENS®
$2,630.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA175-51C-G-M58-AL | Image Circle Diameter (Φmm) | 28.2(1.75") | ||||
| Magnification(x) | 0.55 | Working Distance(mm) | 220 | ||||
| NA | 0.0344 | Type | Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 51.2 | ||||
| Best Aperture(f/#) | 8 | MTF30 (lp/mm) | 106 | ||||
| Object Resolution(μm) | 9.8 | Depth of Field(mm) | 2.1 | ||||
| Distortion Typical(% max) | 0.005 | Telecentricity Typical (°max) | 0.09 | ||||
| Length of I/O(mm) | 430 | Length (mm) | 197.9 | ||||
| Weight(kg) | 1.2 | Iris Adjustable | Yes | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.2 | ||||
| Filter Screw Size | M72x0.75 | ||||||
| Field of View (mm × mm) |
22.53x16.90 with CMV12000 | 40.96x30.73 | |||||
| 18.43x18.43 with PYTHON16k | 33.51x33.51 | ||||||
| 28.8mm with LineScan-2k/4k/8k | 52.36 | ||||||
