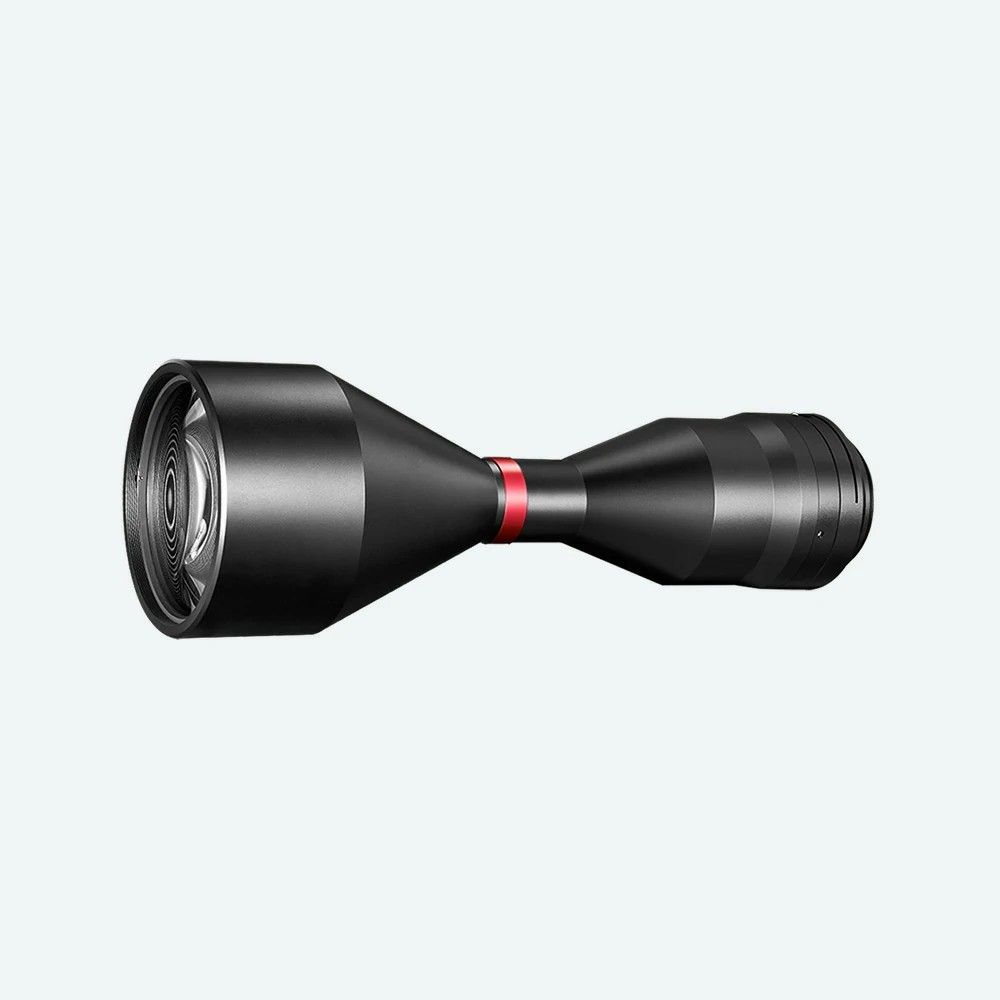

| Model NO. | DTCM35FH-80H-M58-AL | Image Circle Diameter (Φmm) | 43.6(35mm Full) | ||||
| Magnification(x) | 0.545 | Working Distance(mm) | 228±4 | ||||
| NA | 0.0372 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 80 | ||||
| Best Aperture(f/#) | 7.3 | MTF30 (lp/mm) | >115 | ||||
| Depth of Field(mm) | ±2.2@F16 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 546±4 | ||||
| Length (mm) | 306.3 | Weight(kg) | 2.7 | ||||
| Measured Depth of Field (mm) | 1.8 | Filter Screw Size | M103x0.75 | ||||
| Field of View (mm × mm) |
CMV50000 (36.43x27.62) | 66.8x50.7 | |||||
| KAI29050/2 (36.17x24.11) 34.8x23.2 | 66.4x44.2 | ||||||
| KAI43142 (36.18x24.12) | 66.4x44.3 | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-80H-xW-y | |||||
| Beam Diameter 80Hmm | |||||||
