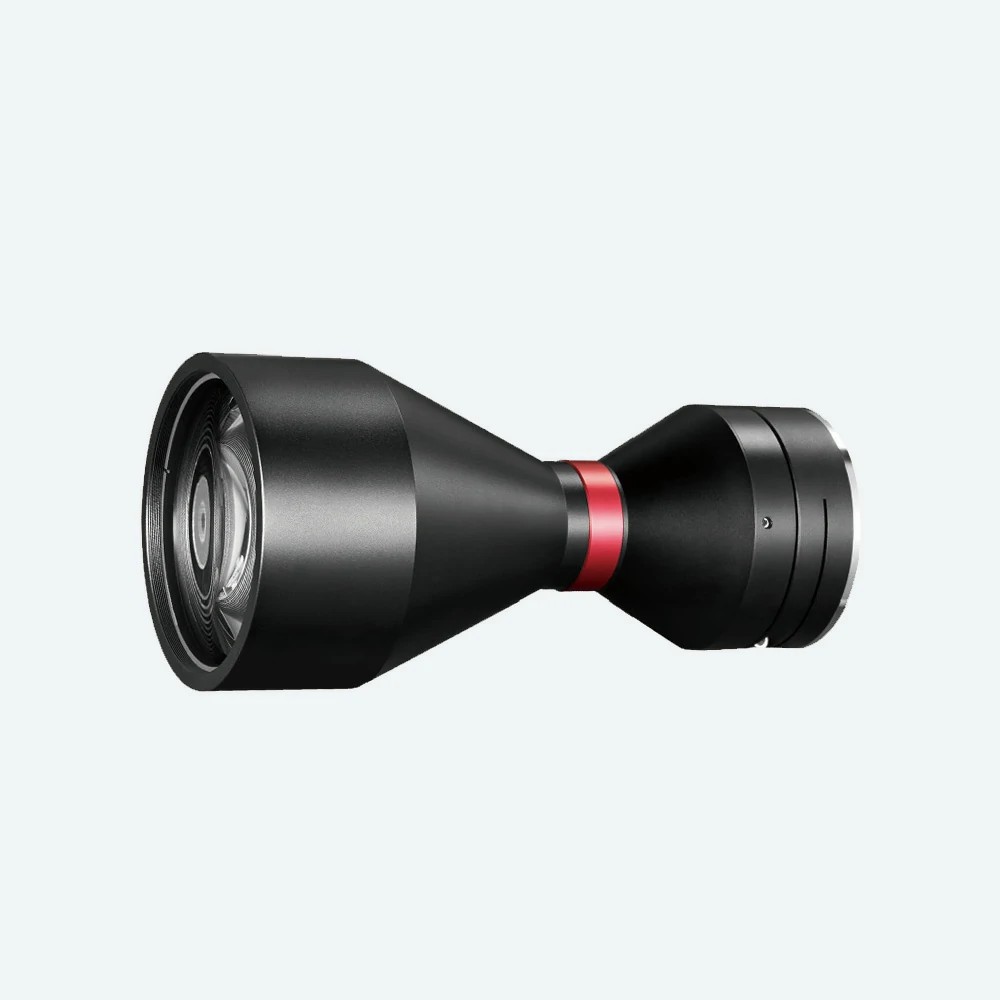

| Model NO. | DTCM175-56-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
| Magnification(x) | 0.518 | Working Distance(mm) | 138±3 | ||||
| NA | 0.0266 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 56 | ||||
| Best Aperture(f/#) | 9.7 | MTF30 (lp/mm) | >85 | ||||
| Depth of Field(mm) | ±3.0@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 381±3 | ||||
| Length (mm) | 230.8 | Weight(kg) | 1.2 | ||||
| Measured Depth of Field (mm) | 2 | Filter Screw Size | M70x0.5 | ||||
| Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 43.5x32.6 | |||||
| 1.75" PYTHON16k (18.43x18.43) | 35.6x35.6 | ||||||
| 1.75" LineScan-4k (28.8mm) | 55.6mm | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-56-xW-y | |||||
| Beam Diameter 56mm | |||||||
