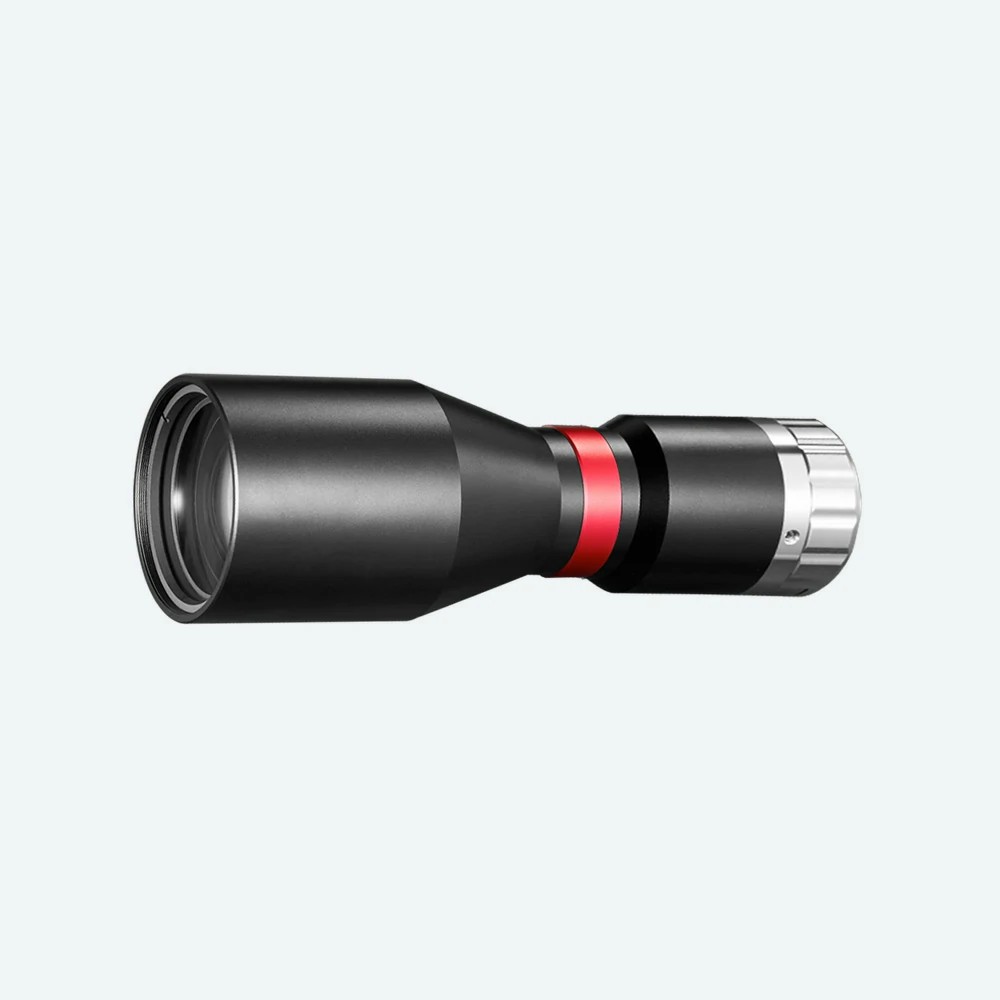

| Model NO. | DTCM111-36-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
| Magnification(x) | 0.511 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0295 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 36 | ||||
| Best Aperture(f/#) | 8.7 | MTF30 (lp/mm) | >85 | ||||
| Depth of Field(mm) | ±3.0@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 295±2 | ||||
| Length (mm) | 167.7 | Weight(kg) | 0.6 | ||||
| Measured Depth of Field (mm) | 1.2 | Filter Screw Size | M50x0.5 | ||||
| Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 25.7x17.1 | |||||
| 1.1" IMX253 (14.19x10.38) | 27.8x20.3 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-36-xW-y | |||||
| Beam Diameter 36mm | |||||||
