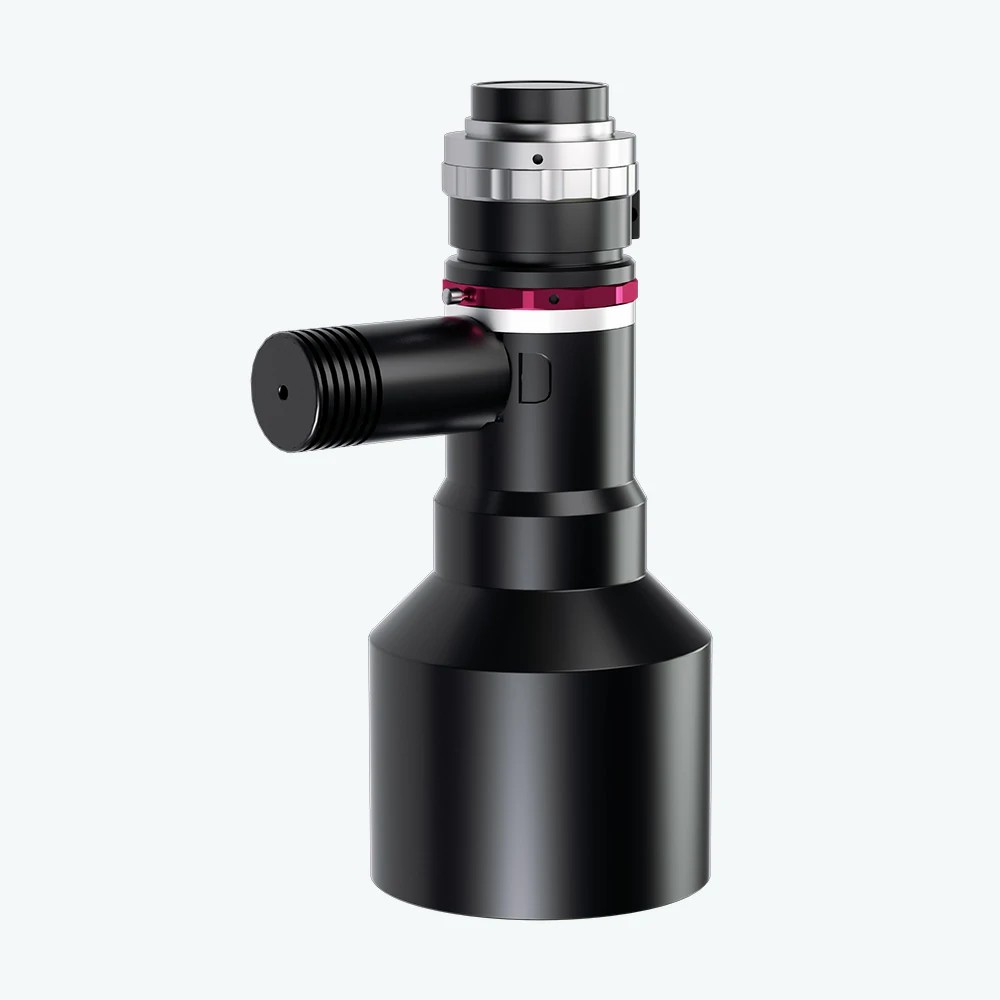

1.75" 0.46X Telecentric Lenses | DTCA175-61.4C-G-M42-AL COOLENS®
$2,766.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA175-61.4C-G-M42-AL | Image Circle Diameter (Φmm) | 28.2(1.75") | ||||
| Magnification(x) | 0.46 | Working Distance(mm) | 250 | ||||
| NA | 0.0288 | Type | Telecentric | ||||
| Mount | M42 | Object Field of View(Φmm) | 61.4 | ||||
| Best Aperture(f/#) | 8 | MTF30 (lp/mm) | 110 | ||||
| Object Resolution(μm) | 11.6 | Depth of Field(mm) | 3 | ||||
| Distortion Typical(% max) | 0.006 | Telecentricity Typical (°max) | 0.1 | ||||
| Length of I/O(mm) | 452 | Length (mm) | 190.1 | ||||
| Weight(kg) | 1.3 | Iris Adjustable | Yes | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.4 | ||||
| Filter Screw Size | M80x0.75 | ||||||
| Field of View (mm × mm) |
22.53x16.90 with CMV12000 | 48.98x36.74 | |||||
| 18.43x18.43 with PYTHON16k | 40.07x40.07 | ||||||
| 28.8mm with LineScan-2k/4k/8k | 62.61 | ||||||
