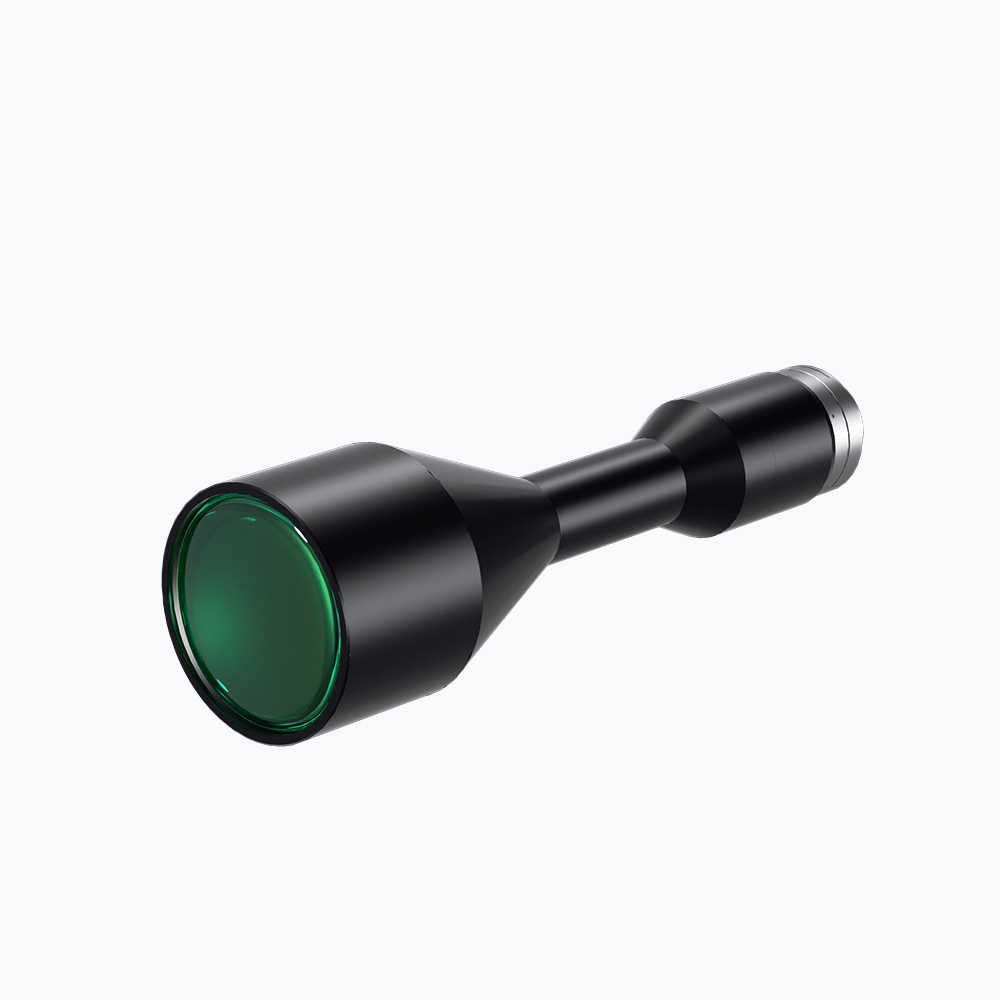

35mm Full 0.462X Bi-Telecentric Lenses | DTCA35F-94-M58-AL COOLENS®
$3,702.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA35F-94-M58-AL | Image Circle Diameter (Φmm) | 43.4(35mm Full) | ||||
| Magnification(x) | 0.462 | Working Distance(mm) | 378 | ||||
| NA | 0.0289 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 94 | ||||
| Best Aperture(f/#) | 8 | MTF30 (lp/mm) | >115 | ||||
| Object Resolution(μm) | 11.6 | Depth of Field(mm) | ±1.5@F8.0 | ||||
| Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
| Length of I/O(mm) | 847 | Length (mm) | 456.9 | ||||
| Weight(kg) | 3.7 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | M126x0.75 | ||||||
| Field of View (mm × mm) |
CMV50000(36.43x27.62) | 78.9x59.8 | |||||
| KAI29050/2(36.17×24.11) | 78.3x52.2 | ||||||
| KAI43142(36.18x24.12) | 78.3x52.2 | ||||||
Dimensions
Naming Rule
