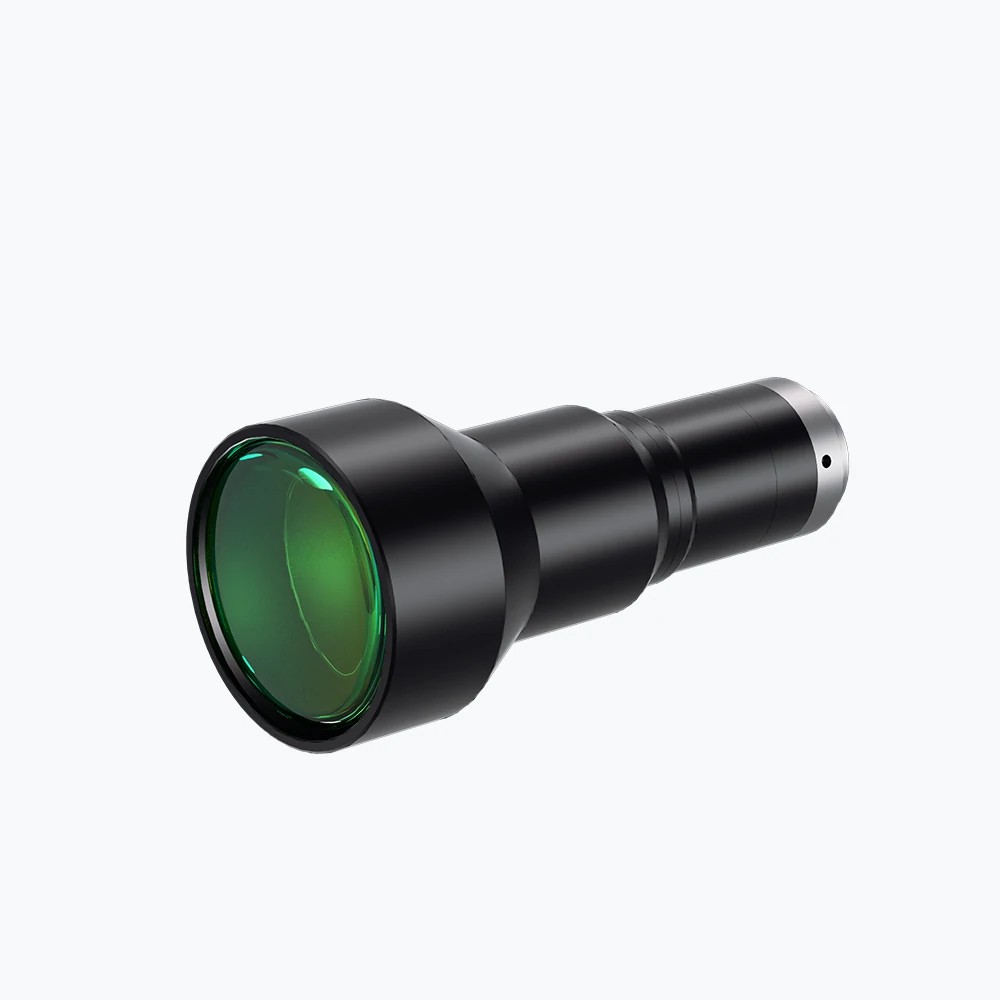

| Model NO. | WWK03-110-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 110±2 | ||||
| NA | 0.0285 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 5.6 | ||||
| MTF30 (lp/mm) | >170 | Object Resolution(μm) | 11.8 | ||||
| Depth of Field(mm) | ±2.5@F5.6 | Distortion Typical(% max) | <0.02 | ||||
| Telecentricity Typical (°max) | <0.04 | Length (mm) | 118 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.4 | ||||
| Filter Screw Size | M52x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/1.8" EV76C570 (7.2x5.4) | 24.0x18.0 | ||||||
| 1/1.7" IMX226 (7.5x5.6) | 25.0x18.7 | ||||||
| 2/3" IMX250/264 (8.45x7.1) | 28.2x23.7 | ||||||
