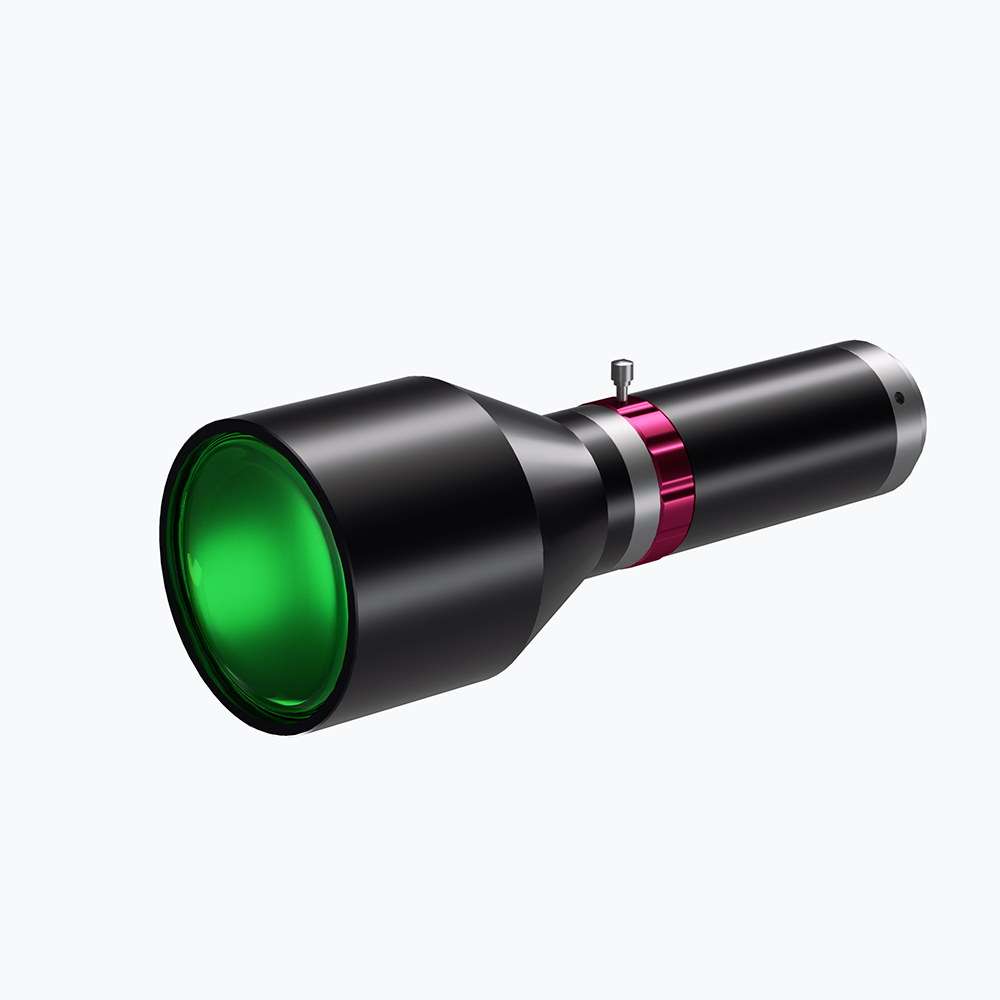

| Model NO. | DTCA230-37 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 110 | ||||
| NA | 0.04 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 37 | ||||
| Best Aperture(f/#) | 3.75-Close | MTF30 (lp/mm) | >220 | ||||
| Object Resolution(μm) | 8.4 | Depth of Field(mm) | ±1.7@F3.75 | ||||
| Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
| Length of I/O(mm) | 273 | Length (mm) | 145.5 | ||||
| Weight(kg) | 0.4 | Iris Adjustable | Yes | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | M50x0.5 | ||||||
| Field of View (mm × mm) |
1/1.8" EV76C570 (7.2x5.4) | 24.0x18.0 | |||||
| 1/1.7" IMX226 (7.5x5.6) | 25.0x18.7 | ||||||
| 2/3" IMX250/264 (8.45x7.1) | 28.2x23.7 | ||||||
