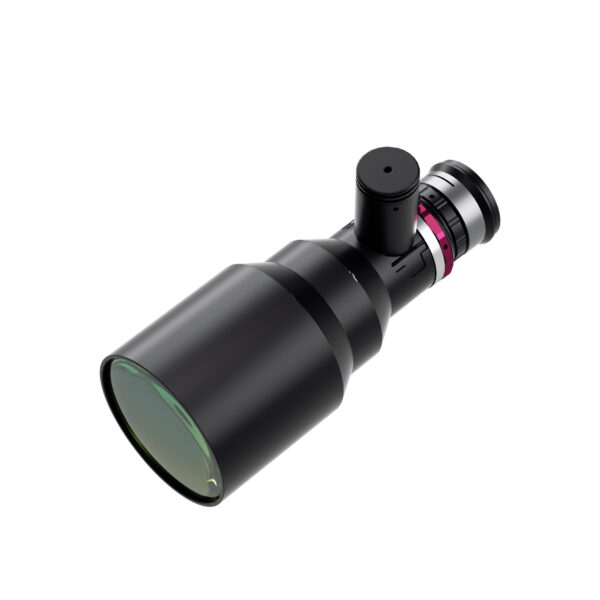

| Model NO. | DTCA138-56C-G-M42-AL | Magnification(x) | 0.3 | ||||
| Object Field of View (Φmm) | 56.0 | Working Distance (mm) | 250±3 | ||||
| Max Sensor Size (Φmm) | 13.8 | Best Aperture (F/#) | 22 | ||||
| Telecentricity typical (max) (deg) | 0.1 | Distortion typical (max) (%) | 0.063 | ||||
| MTF30 (lp/mm) | 180-46 | Depth of Field (mm) | 6.2-28.2 | ||||
| Length of I/O (mm) | 450±3 | Mount | M58 | ||||
| Length (mm) | 188.2 | Weight (kg) | 1.05 | ||||
| Coaxial Illumination Port Option | YES | Iris Adjustable | YES | ||||
| Back Focal Length Adjustable | YES | ||||||
| Field of View (mm × mm) |
CCD（Φ13.8mm） | Φ55.2 | |||||
