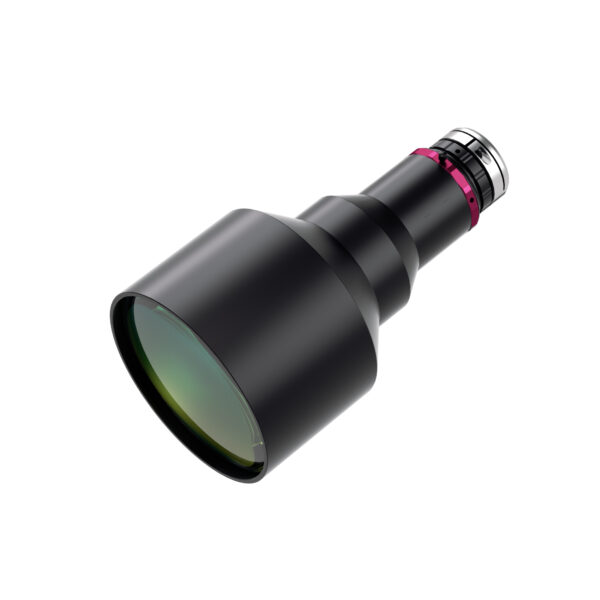

| Model NO. | DTCA121-80-G-AL | Magnification(x) | 0.3 | ||||
| Object Field of View (Φmm) | 80.0 | Working Distance (mm) | 240 | ||||
| Max Sensor Size (Φmm) | 20(1.2") | Best Aperture (F/#) | 6.0 | ||||
| Telecentricity typical (max) (deg) | 0.1 | Distortion typical (max) (%) | 0.05 | ||||
| MTF30 (lp/mm) | 150 | Depth of Field (mm) | 7.7 | ||||
| Length of I/O (mm) | 448 | Mount | C | ||||
| Length (mm) | 190.7 | Weight (kg) | 1.26 | ||||
| Coaxial Illumination Port Option | NO | Iris Adjustable | YES | ||||
| Back Focal Length Adjustable | NO | ||||||
| Field of View (mm × mm) |
1.2" IMX530/540 (14.6x12.6) | 58.4x50.4 | |||||
