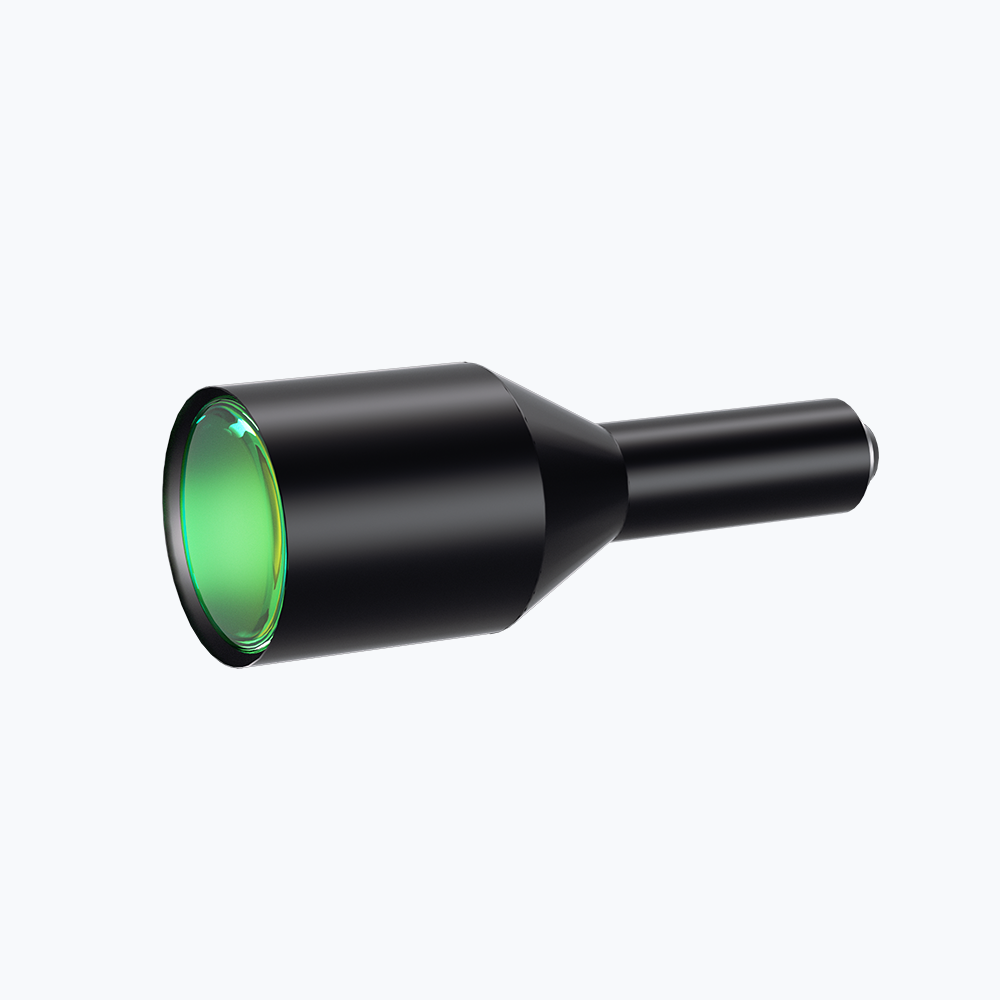

| Model NO. | WWK03-250-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.300 | Working Distance(mm) | 250±2 | ||||
| NA | 0.0190 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 8 | ||||
| MTF30 (lp/mm) | >102 | Object Resolution(μm) | 17.6 | ||||
| Depth of Field(mm) | ±3.6@F8 | Distortion Typical(% max) | <0.2 | ||||
| Telecentricity Typical (°max) | <0.2 | Length (mm) | 200.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
| Filter Screw Size | M70x0.75 | ||||||
| Field of View (mm x mm) | |||||||
| 1" PYTHON 5000 (12.43x9.83) | 41.4x32.8 | ||||||
| 1" IMX255 (14.19x7.51) | 47.3x25.0 | ||||||
| 1" IMX183 (13.13x8.76) | 43.8x29.2 | ||||||
