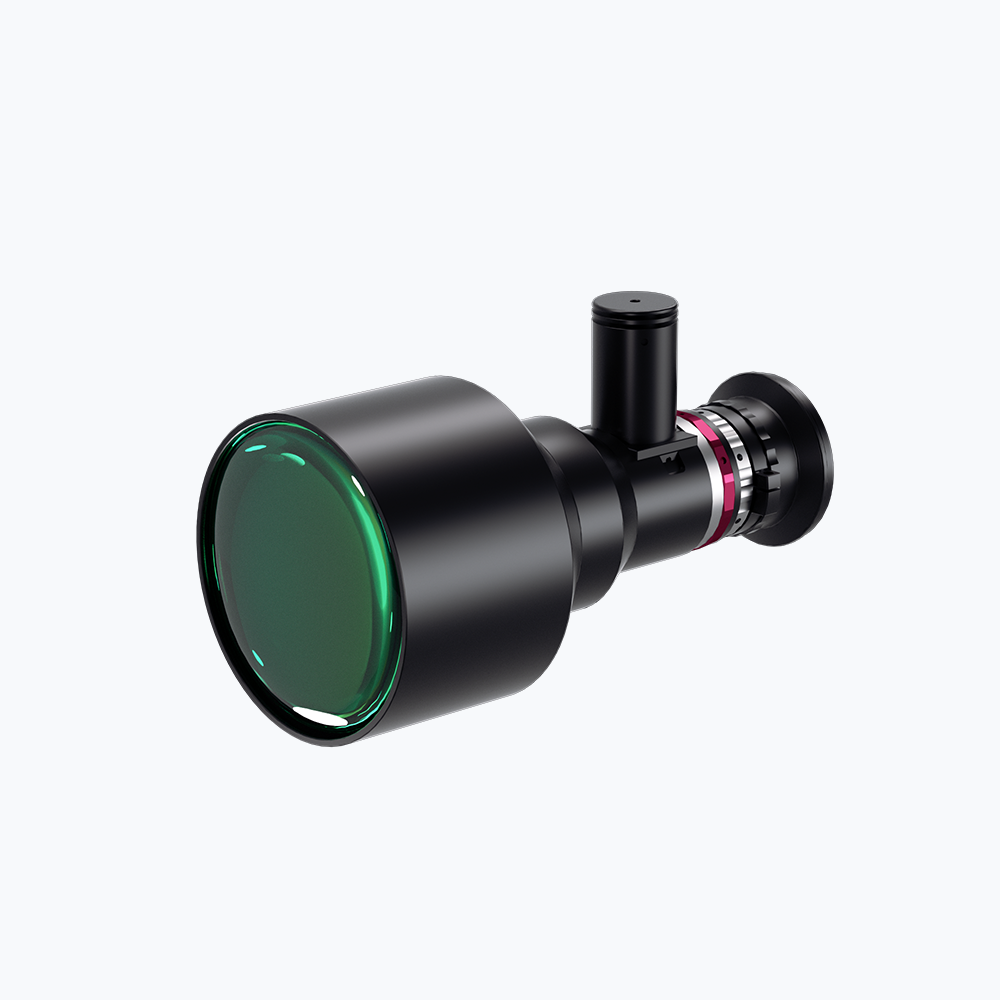

1.85" 0.37X Telecentric Lenses | DTCA185-81C-G-M58-AL COOLENS®
$3,020.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCA185-81C-G-M58-AL | Image Circle Diameter (Φmm) | 20(1.85") | ||||
| Magnification(x) | 0.37 | Working Distance(mm) | 250 | ||||
| NA | 0.0231 | Type | Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 81.1 | ||||
| Best Aperture(f/#) | 8 | MTF30 (lp/mm) | 114 | ||||
| Object Resolution(μm) | 14.5 | Depth of Field(mm) | 4.7 | ||||
| Distortion Typical(% max) | 0.02 | Telecentricity Typical (°max) | 0.09 | ||||
| Length of I/O(mm) | 462 | Length (mm) | 200 | ||||
| Weight(kg) | 2.5 | Iris Adjustable | Yes | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.4 | ||||
| Filter Screw Size | M100x0.75 | ||||||
| Field of View (mm × mm) |
1.75" IMX342 (22.3X16.7) | 60.3x45.1 | |||||
Dimensions
Naming Rule
