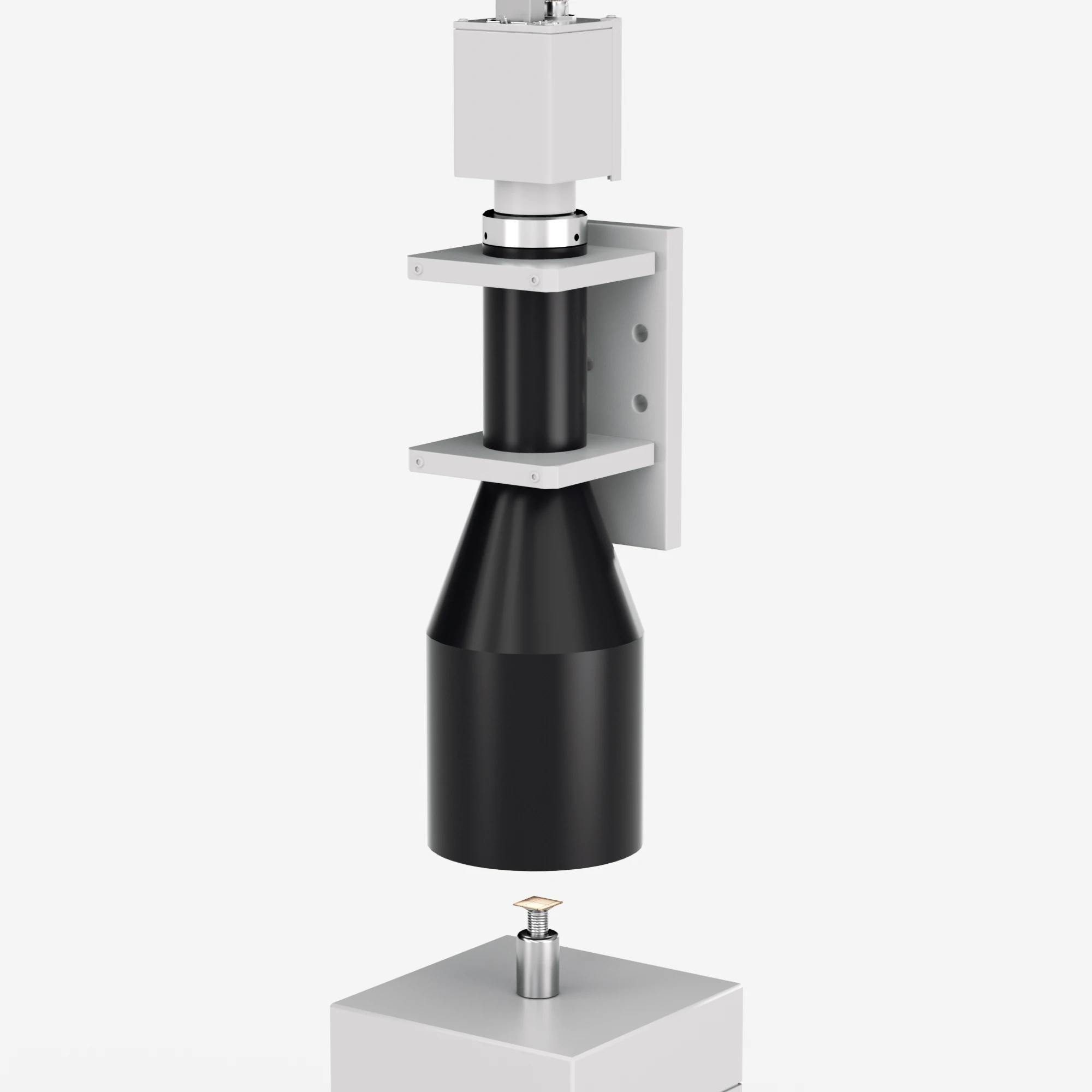

1" 0.32X Telecentric Lenses | WWK032-220-110 COOLENS®
$1,227.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWK032-220-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.320 | Working Distance(mm) | 220±2 | ||||
| NA | 0.0132 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 12.1 | ||||
| MTF30 (lp/mm) | >75 | Object Resolution(μm) | 25.4 | ||||
| Depth of Field(mm) | ±4.7@F12.1 | Distortion Typical(% max) | <0.15 | ||||
| Telecentricity Typical (°max) | <0.07 | Length (mm) | 210 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
| Filter Screw Size | M65x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1'' IMX183(13.13×8.76) | 41.03×27.4 | ||||||
Dimensions
Naming Rule
