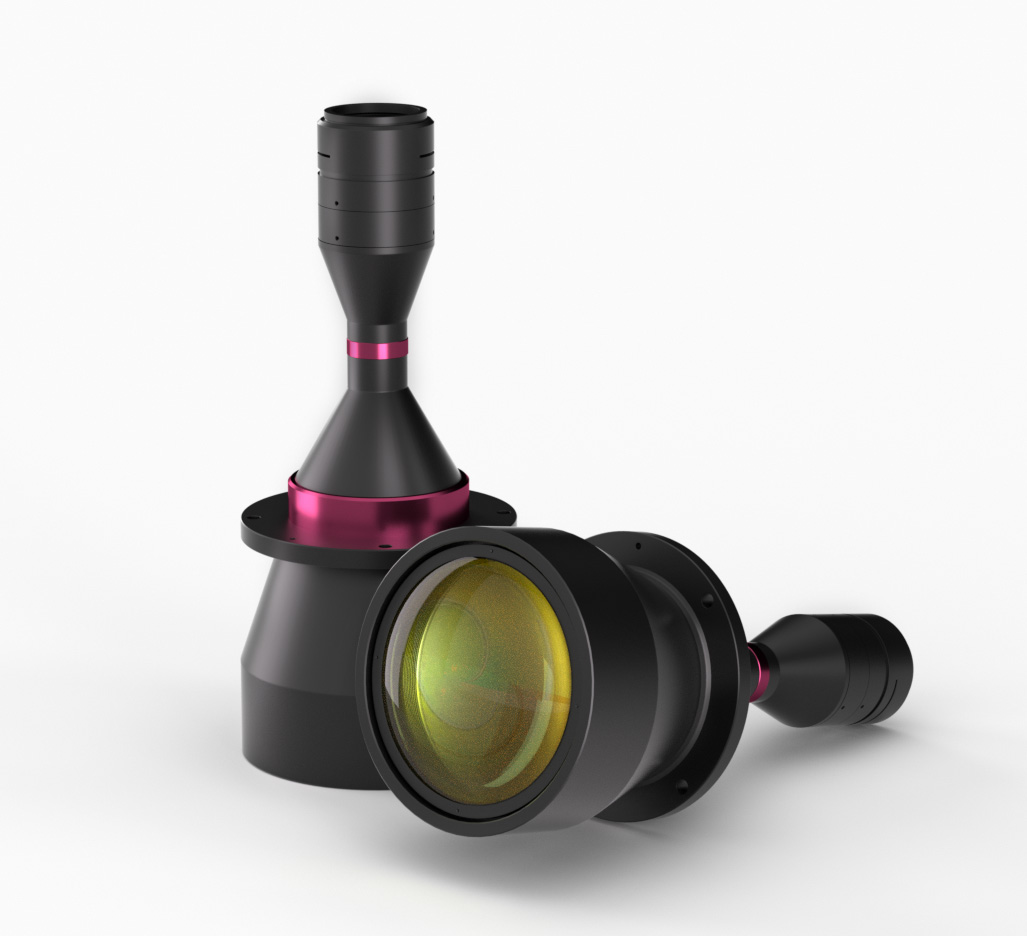

| Model NO. | DTCM210-120H-M58-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
| Magnification(x) | 0.275 | Working Distance(mm) | 273±5 | ||||
| NA | 0.0177 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 120 | ||||
| Best Aperture(f/#) | 7.8 | MTF30 (lp/mm) | >115 | ||||
| Depth of Field(mm) | ±8.5@F16 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 653±5 | ||||
| Length (mm) | 368.3 | Weight(kg) | 4.8 | ||||
| Measured Depth of Field (mm) | 4 | Filter Screw Size | M150x1.0 | ||||
| Field of View (mm × mm) |
2" DALSA 12M (24.58x18.43) | 89.4x67.0 | |||||
| 2" PYTHON 25K (23.04x23.04) | 83.8x83.8 | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-120-xW-y | |||||
| Beam Diameter 120mm | |||||||
