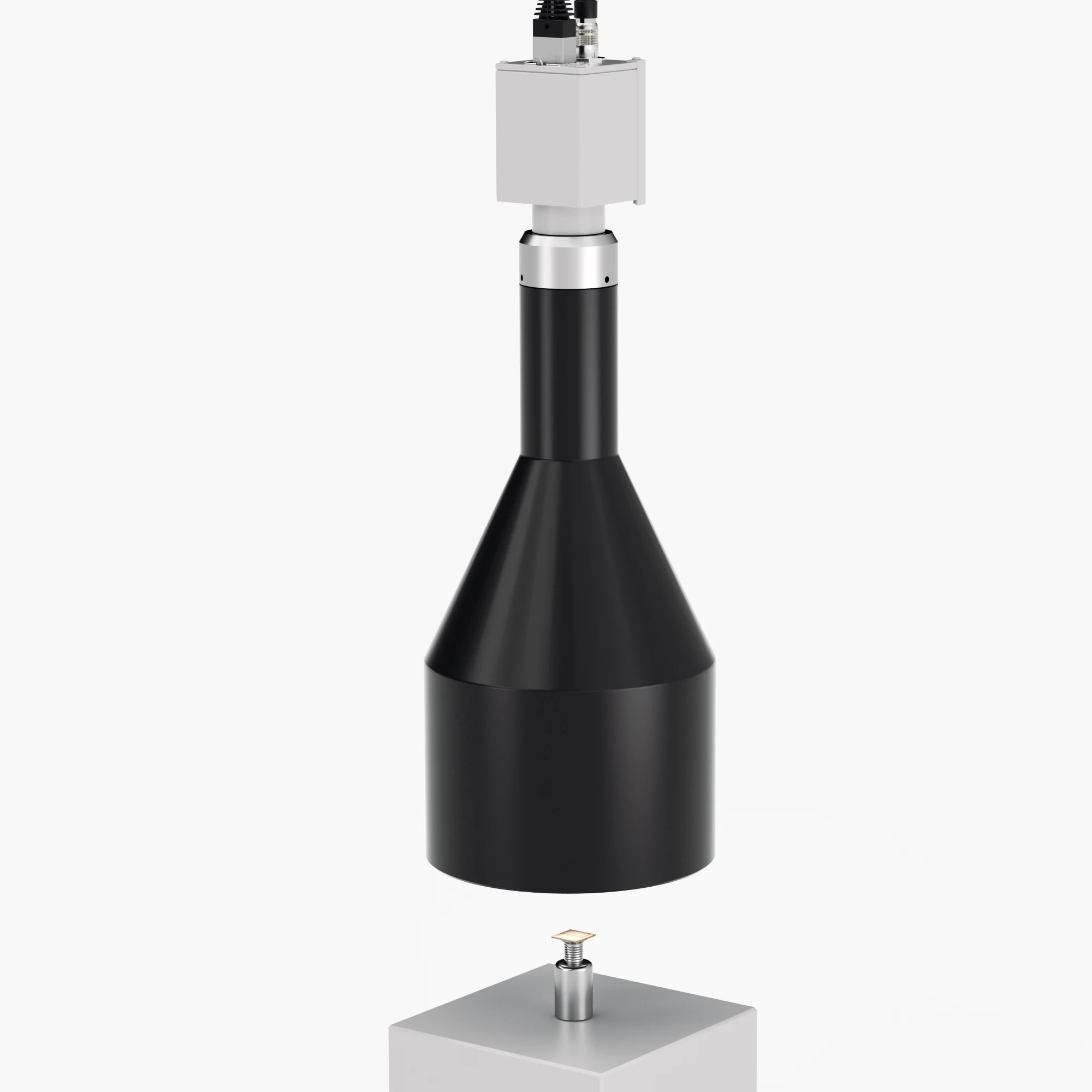

| Model NO. | WWK023-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.230 | Working Distance(mm) | 220±2 | ||||
| NA | 0.0143 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 8 | ||||
| MTF30 (lp/mm) | >110 | Object Resolution(μm) | 23.5 | ||||
| Depth of Field(mm) | ±6.0@F8 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.18 | Length (mm) | 233 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5 | ||||
| Filter Screw Size | M99x0.75 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 57.1x38.1 | ||||||
| 1.1" IMX253 (14.19x10.38) | 61.7x45.1 | ||||||
