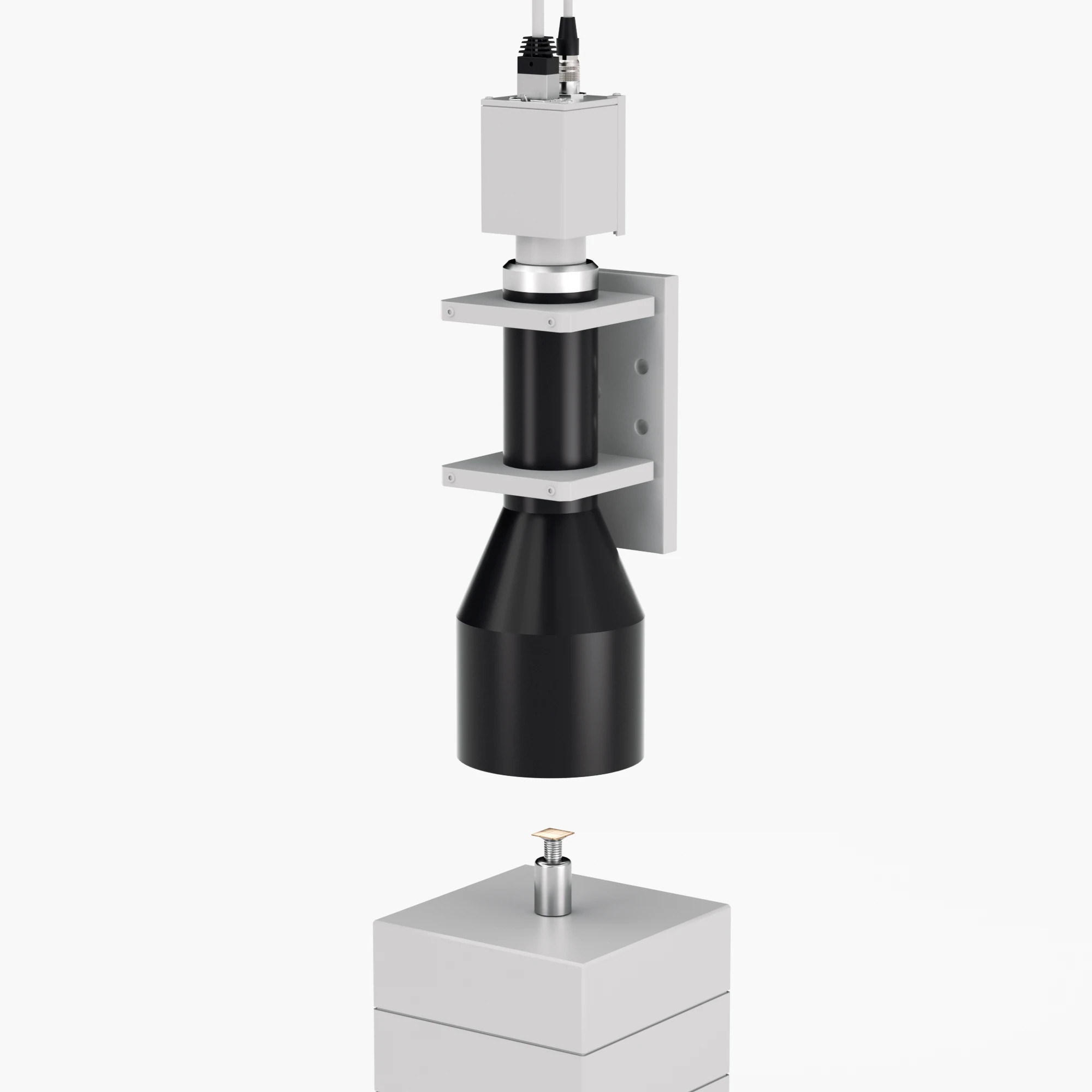

2/3" 0.22X Telecentric Lenses | WWK022-220-230-ALV2 COOLENS®
$992.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | WWK022-220-230-ALV2 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.22 | Working Distance(mm) | 220±2 | ||||
| NA | 0.0160 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 6.9 | ||||
| MTF30 (lp/mm) | >130 | Object Resolution(μm) | 21 | ||||
| Depth of Field(mm) | ±5.7@F6.9 | Distortion Typical(% max) | <0.05 | ||||
| Telecentricity Typical (°max) | <0.05 | Length (mm) | 190.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
| Filter Screw Size | M65x0.5 | ||||||
| Field of View (mm x mm) | |||||||
| 1/1.8" EV76C570 (7.2x5.4) | 32.7x24.5 | ||||||
| 1/1.7" IMX226 (7.5x5.6) | 34.0x25.5 | ||||||
| 2/3" IMX250/264 (8.45x7.1) | 38.4x32.3 | ||||||
