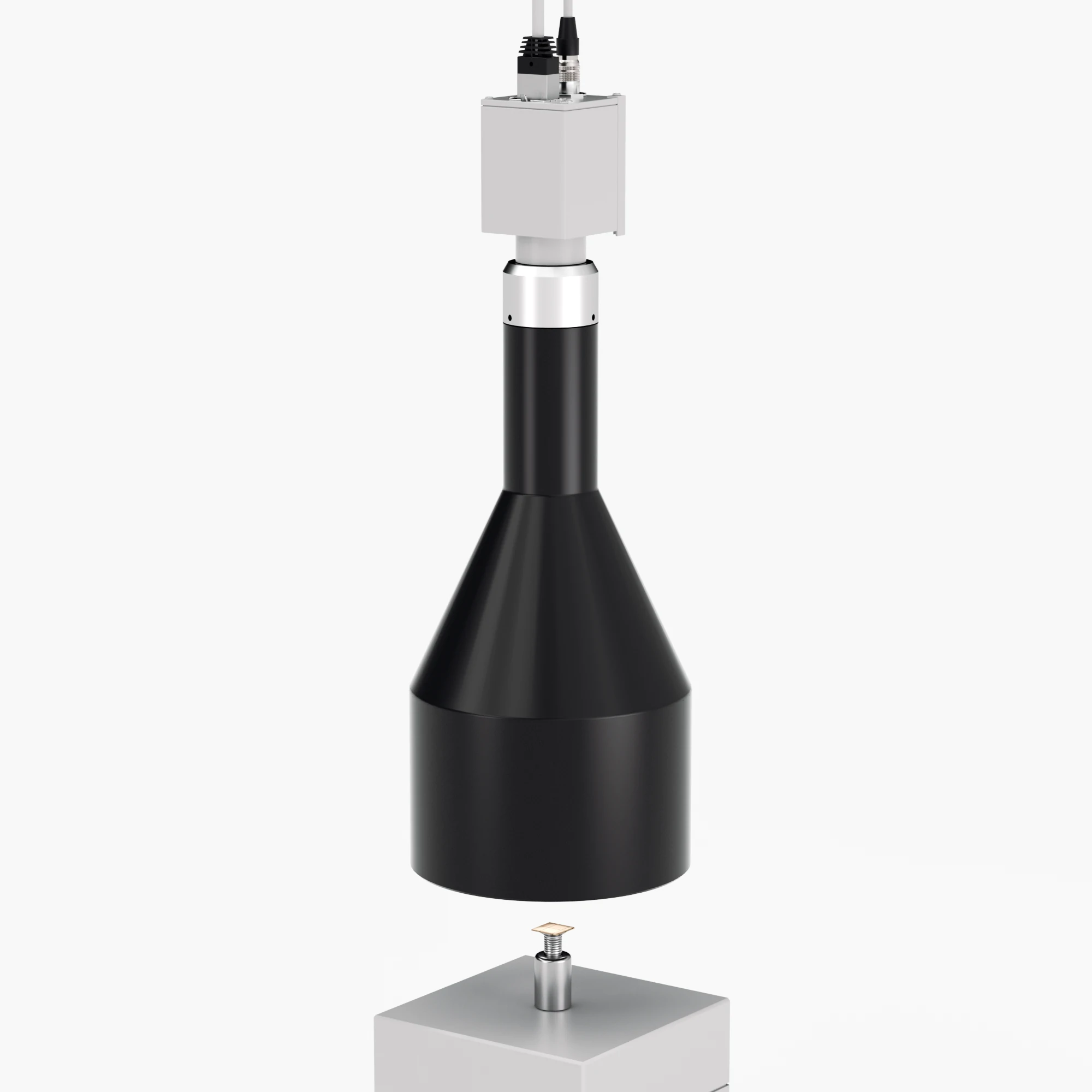

| Model NO. | WWK022-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.220 | Working Distance(mm) | 220±2 | ||||
| NA | 0.0138 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 8.00 | ||||
| MTF30 (lp/mm) | >110 | Object Resolution(μm) | 24.3 | ||||
| Depth of Field(mm) | ±6.6@F8 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.15 | Length (mm) | 232.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 6 | ||||
| Filter Screw Size | M99x0.75 | ||||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 59.7x39.8 | ||||||
| 1.1" IMX253 (14.19x10.38) | 64.5x47.2 | ||||||
