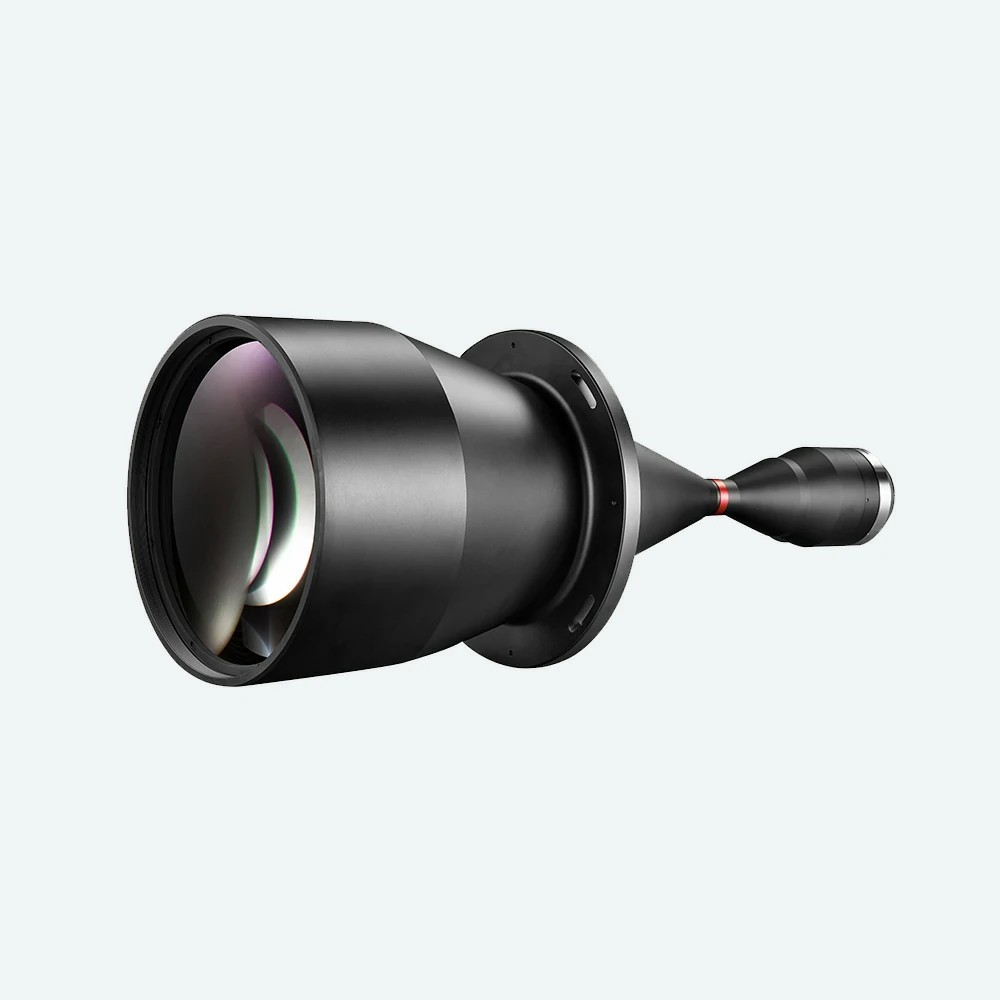

| Model NO. | DTCM150M-300-M72-19.5-AL | Image Circle Diameter (Φmm) | 67.6(150M) | ||||
| Magnification(x) | 0.225 | Working Distance(mm) | 465±6 | ||||
| NA | 0.0109 | Type | Bi-Telecentric | ||||
| Mount | M72 | Object Field of View(Φmm) | 300 | ||||
| Best Aperture(f/#) | 6.6 | MTF30 (lp/mm) | >98 | ||||
| Depth of Field(mm) | ±5.2@F6.6 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1305±6 | ||||
| Length (mm) | 820.5 | Weight(kg) | 48.027 | ||||
| Measured Depth of Field (mm) | 6.5 | Filter Screw Size | / | ||||
| Field of View (mm × mm) |
150M IMX411 (53.42x40mm） | 203.9x152.6 | |||||
