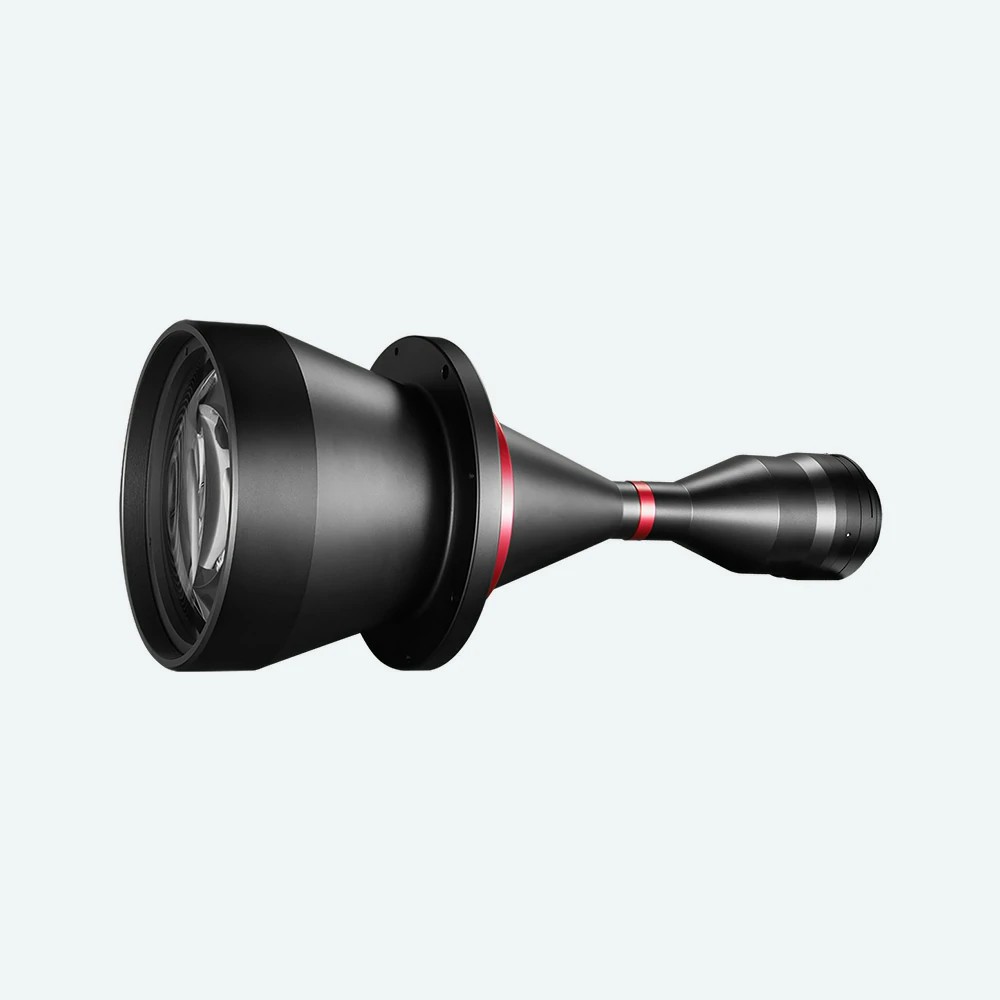

| Model NO. | DTCM35FH-216-M58-AL | Image Circle Diameter (Φmm) | 43.6(35mm Full) | ||||
| Magnification(x) | 0.202 | Working Distance(mm) | 372±5 | ||||
| NA | 0.0098 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 216 | ||||
| Best Aperture(f/#) | 10.4 | MTF30 (lp/mm) | >90 | ||||
| Depth of Field(mm) | ±19.6@F20 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1017±5 | ||||
| Length (mm) | 633 | Weight(kg) | 14.7 | ||||
| Measured Depth of Field (mm) | 4 | Filter Screw Size | M249x1.0 | ||||
| Field of View (mm × mm) |
CMV50000 (36.43x27.62) | 180.3x136.7 | |||||
| KAI29050/2 (36.17x24.11) 34.8x23.2 | 179.1x119.4 | ||||||
| KAI43142 (36.18x24.12) | 179.1x119.4 | ||||||
| Compatible Lighting |
Telecentric LED Lighting | DTCL-216-xW-y | |||||
| Beam Diameter 216mm | |||||||
