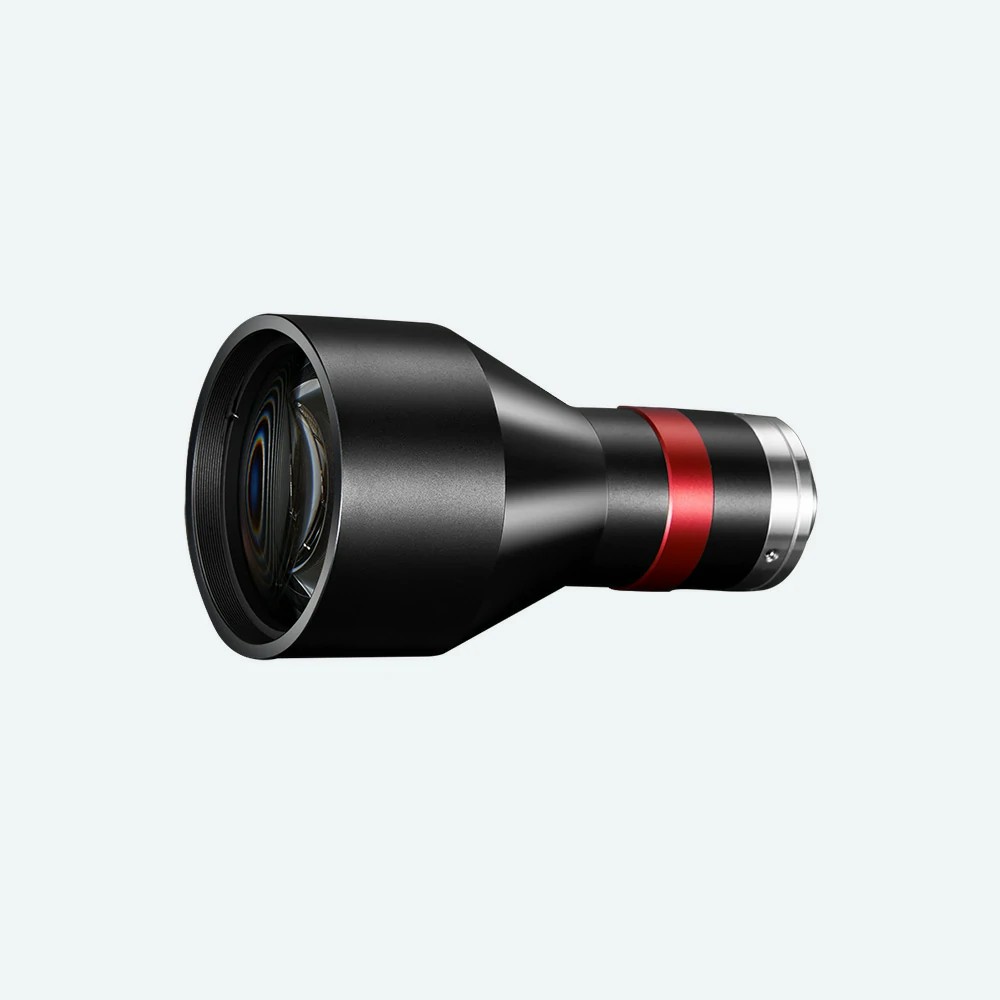

1/2.5" 0.171X Bi-Telecentric Lenses | DTCM125-42 COOLENS®
$935.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM125-42 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.171 | Working Distance(mm) | 118±3 | ||||
| NA | 0.0202 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 42 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >200 | ||||
| Depth of Field(mm) | ±15.0@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 244±3 | ||||
| Length (mm) | 108.9 | Weight(kg) | 0.4 | ||||
| Measured Depth of Field (mm) | 3 | Filter Screw Size | M56x0.5 | ||||
| Field of View (mm × mm) | 1/3" AR130/RJ33 (4.8x3.6) | 28.1x21.1 | |||||
| 1/2.5" 9P001/31 (5.7x4.28) | 33.3x25.0 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-42-xW-y | |||||
| Beam Diameter 42mm | |||||||
Dimensions
Naming Rule
