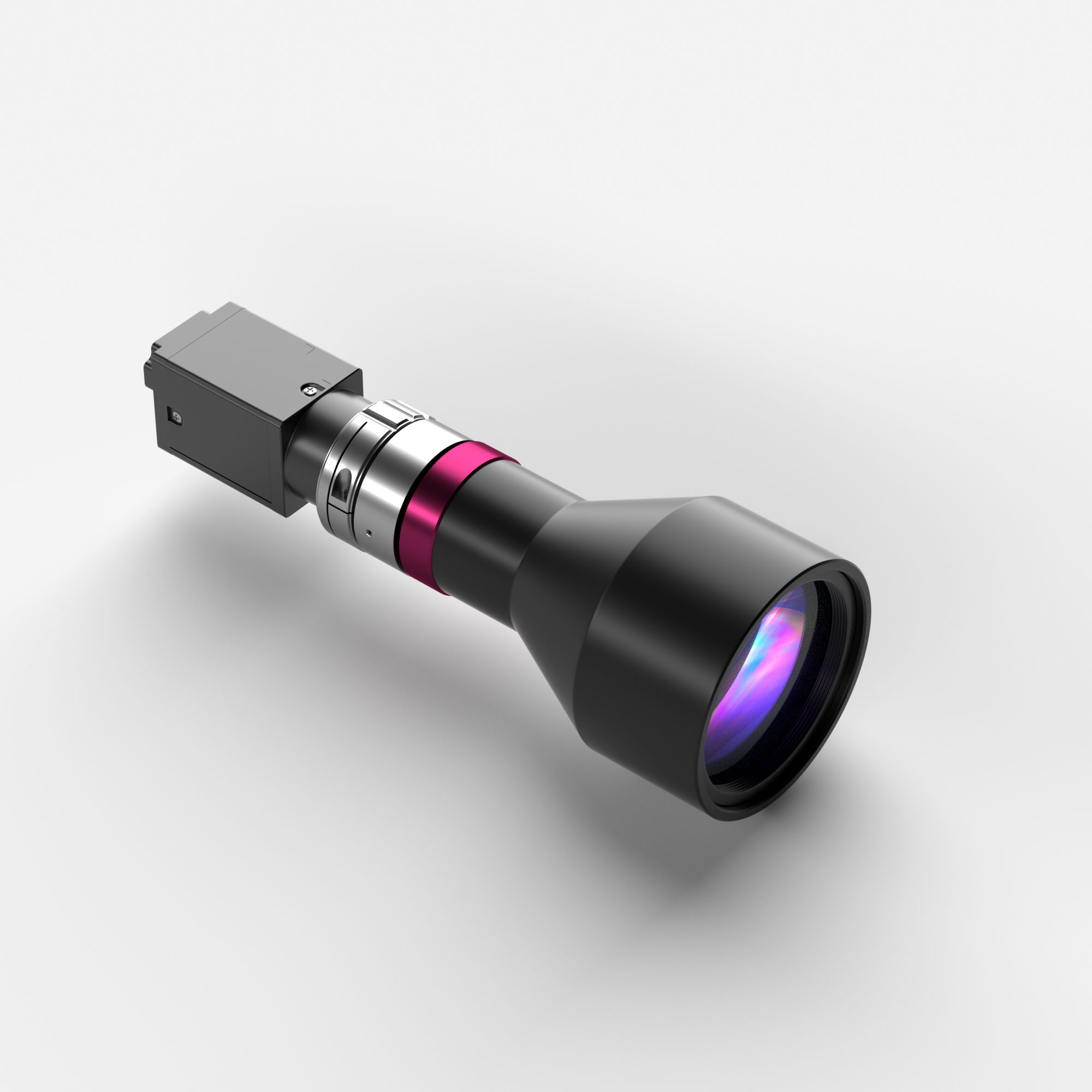

| Model NO. | DTCM120-48-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.167 | Working Distance(mm) | 128±3 | ||||
| NA | 0.0198 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 48 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >200 | ||||
| Depth of Field(mm) | ±15.7@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 272±3 | ||||
| Length (mm) | 126.2 | Weight(kg) | 0.4 | ||||
| Measured Depth of Field (mm) | 3.2 | Filter Screw Size | M60x0.5 | ||||
| Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 34.1x25.6 | |||||
| 1/2.3" 9J003 (6.44x4.62) | 38.6x27.7 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-48-xW-y | |||||
| Beam Diameter 48mm | |||||||
