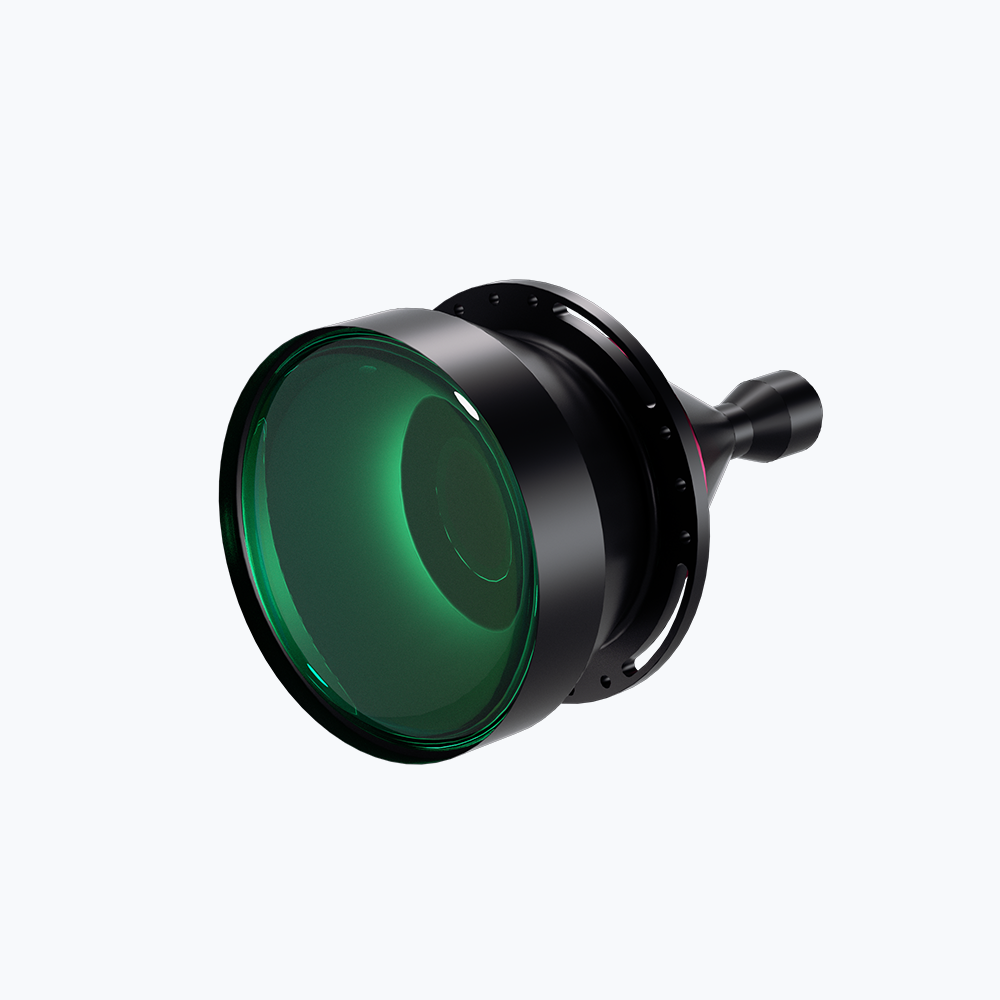

| Model NO. | DTCA210-215-M42-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
| Magnification(x) | 0.154 | Working Distance(mm) | 215 | ||||
| NA | 0.0096 | Type | Telecentric | ||||
| Mount | M42 | Object Field of View(Φmm) | 215 | ||||
| Best Aperture(f/#) | 8 | MTF30 (lp/mm) | >90 | ||||
| Object Resolution(μm) | 34.9 | Depth of Field(mm) | ±13.6@F8 | ||||
| Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
| Length of I/O(mm) | 601 | Length (mm) | 369 | ||||
| Weight(kg) | 8.7 | Iris Adjustable | No | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | M236x1.0 | ||||||
| Field of View (mm × mm) |
2" DALSA 12M (24.58x18.43) | 160x120 | |||||
| 2" PYTHON 25K (23.04x23.04) | 150x150 | ||||||
