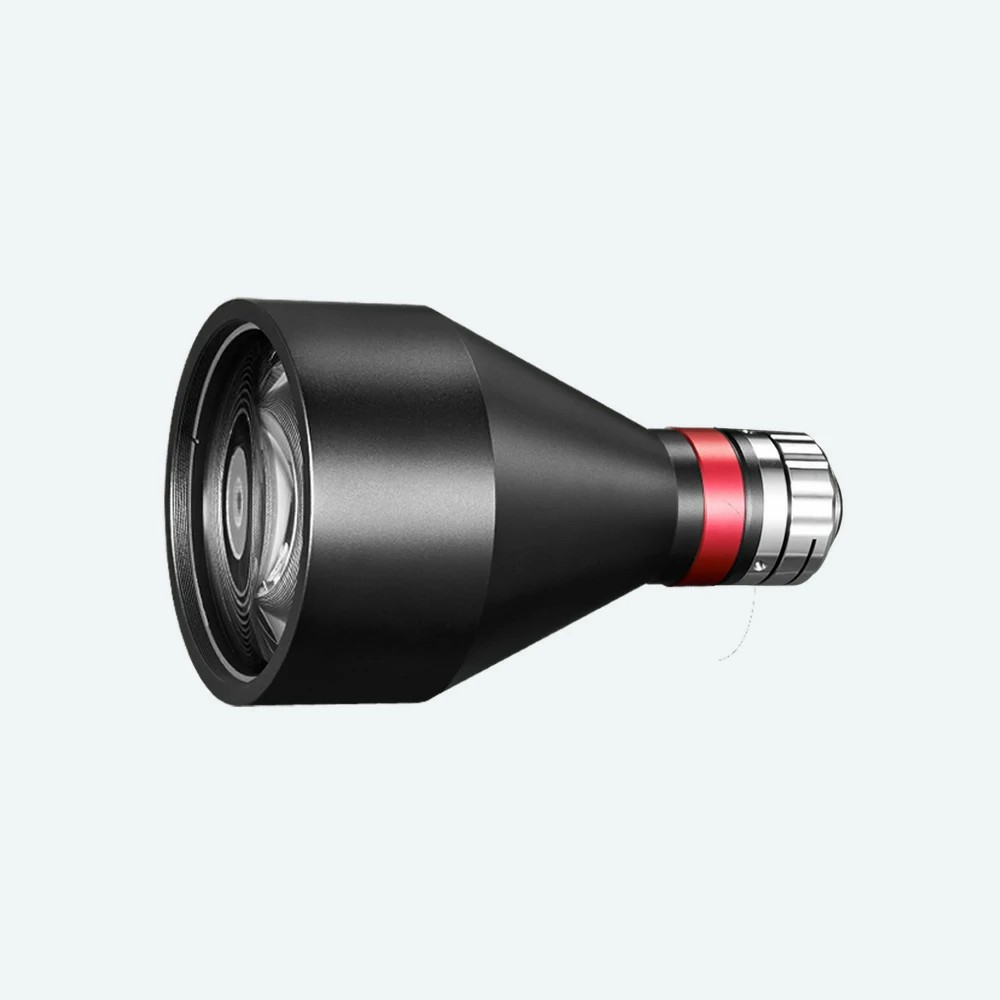

1/2" 0.143X Bi-Telecentric Lenses | DTCM120-56-AL COOLENS®
$1,130.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM120-56-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.143 | Working Distance(mm) | 138±3 | ||||
| NA | 0.0170 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 56 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >210 | ||||
| Depth of Field(mm) | ±21.5@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 304±3 | ||||
| Length (mm) | 148.7 | Weight(kg) | 0.6 | ||||
| Measured Depth of Field (mm) | 4 | Filter Screw Size | M70x0.5 | ||||
| Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 39.9x29.9 | |||||
| 1/2.3" 9J003 (6.44x4.62) | 45.0x32.3 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-56-xW-y | |||||
| Beam Diameter 56mm | |||||||
Dimensions
Naming Rule
