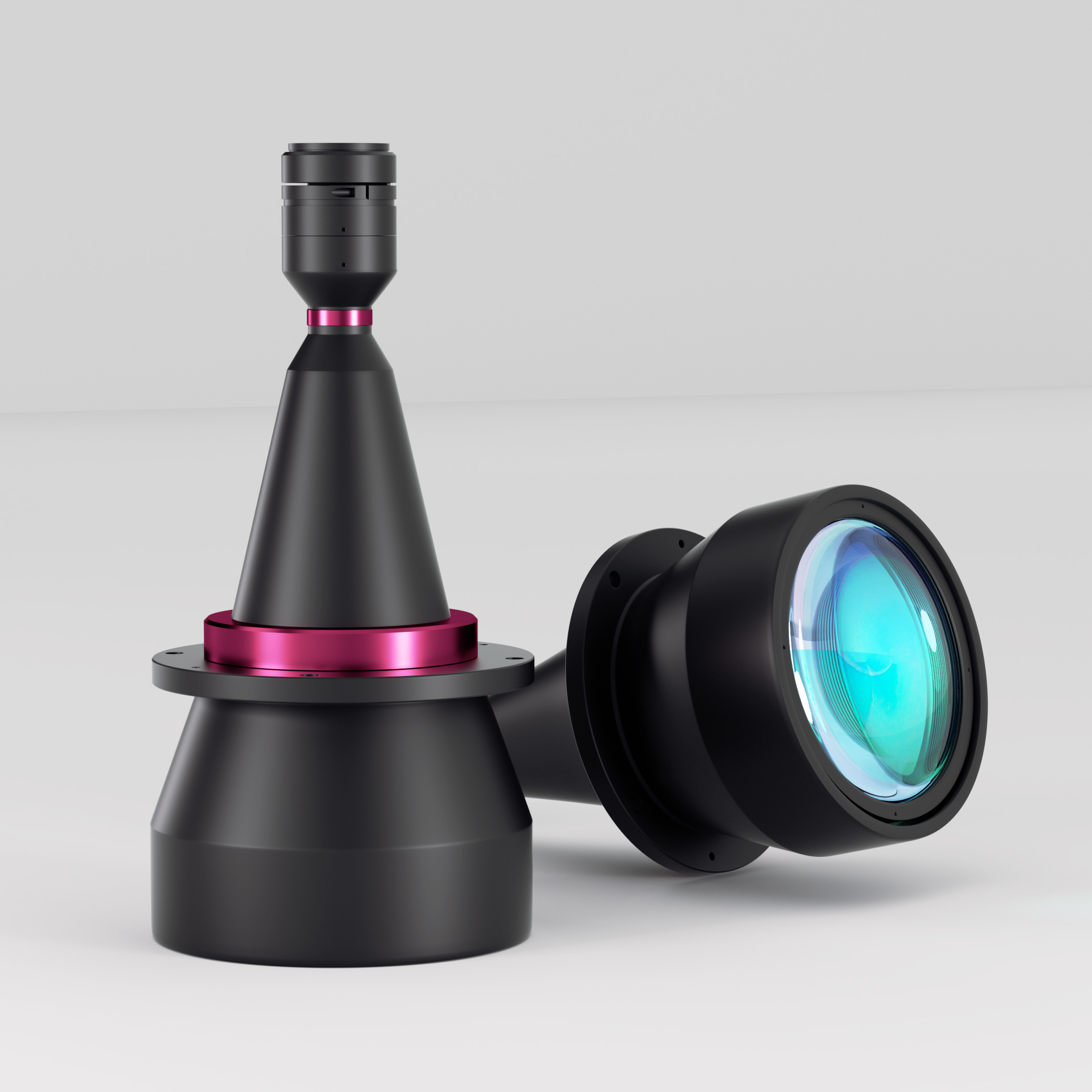

4/3" 0.139X Bi-Telecentric Lenses | DTCM430H-170-M58-AL COOLENS®
$6,702.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM430H-170-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
| Magnification(x) | 0.139 | Working Distance(mm) | 318±5 | ||||
| NA | 0.0150 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 170 | ||||
| Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >188 | ||||
| Depth of Field(mm) | ±33.2@F16 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 766±5 | ||||
| Length (mm) | 436.5 | Weight(kg) | 7 | ||||
| Measured Depth of Field (mm) | 7 | Filter Screw Size | M204x0.75 | ||||
| Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 128.5x103.0 | |||||
| 4/3" PYTHON 12K (18.43x13.82) | 132.6x99.4 | ||||||
| 4/3" CMV8000 (18.48x13.73) | 132.9x98.8 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-170-xW-y | |||||
| Beam Diameter 170mm | |||||||
Dimensions
Naming Rule
