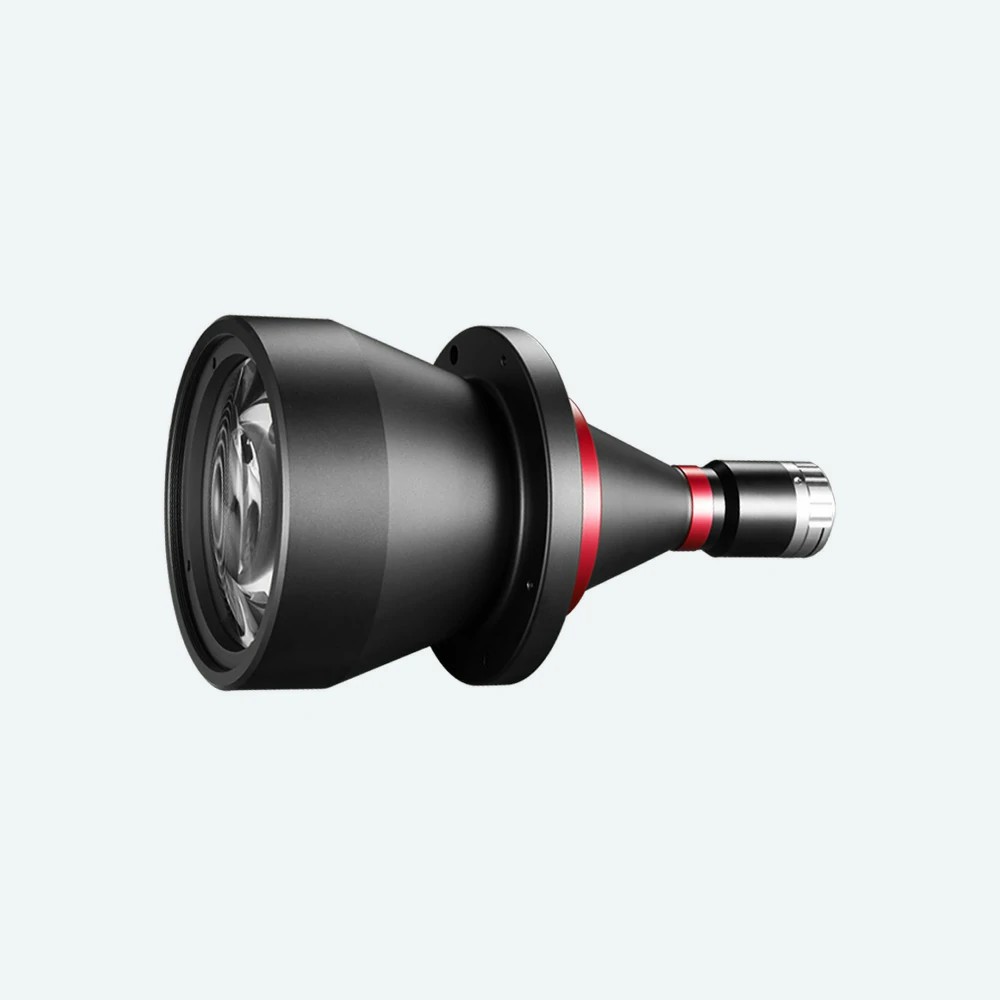

| Model NO. | DTCM111-136-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
| Magnification(x) | 0.135 | Working Distance(mm) | 288±5 | ||||
| NA | 0.0109 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 136 | ||||
| Best Aperture(f/#) | 6.2 | MTF30 (lp/mm) | >150 | ||||
| Depth of Field(mm) | ±24.1@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 690±5 | ||||
| Length (mm) | 384.3 | Weight(kg) | 4.3 | ||||
| Measured Depth of Field (mm) | 9 | Filter Screw Size | M160x0.75 | ||||
| Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 97.3x64.9 | |||||
| 1.1" IMX253 (14.19x10.38) | 105.1x76.9 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-136-xW-y | |||||
| Beam Diameter 136mm | |||||||
