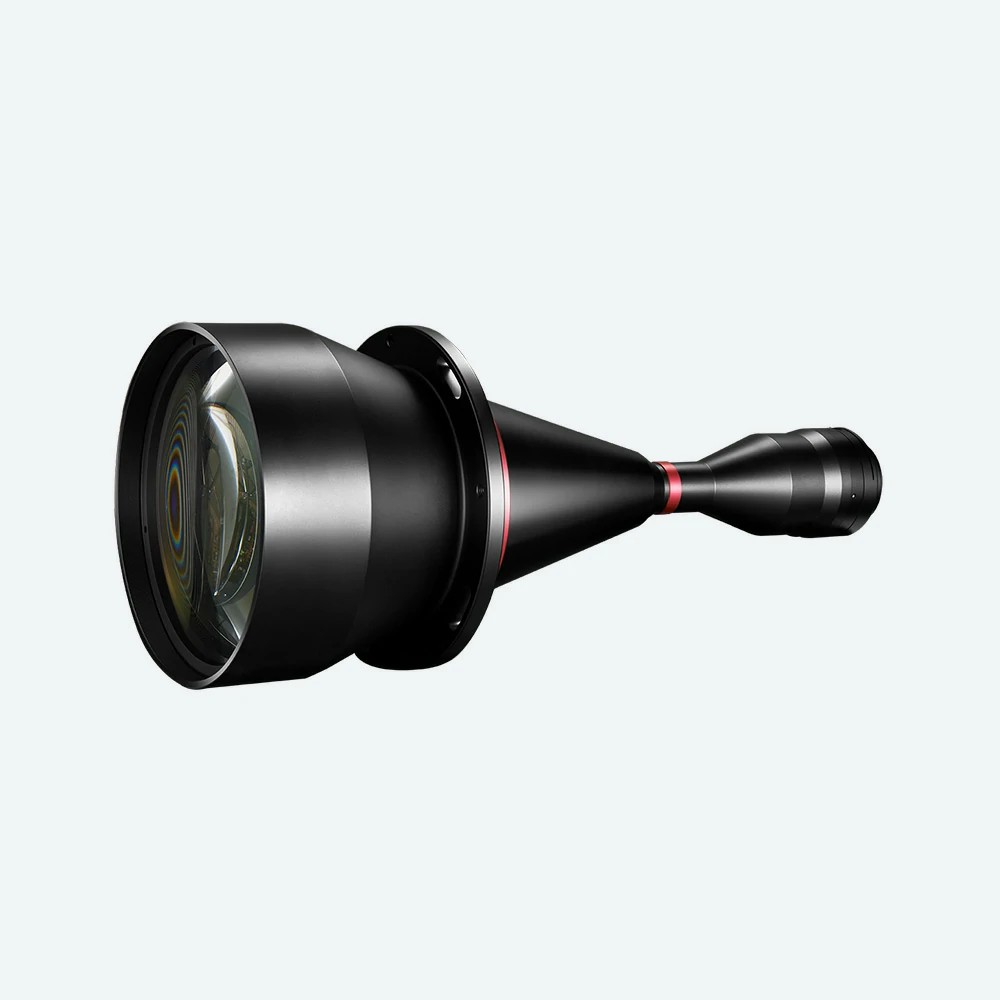

| Model NO. | DTCM430H-258-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
| Magnification(x) | 0.091 | Working Distance(mm) | 338±5 | ||||
| NA | 0.0099 | Type | Bi-Telecentric | ||||
| Mount | M58 | Object Field of View(Φmm) | 258 | ||||
| Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >166 | ||||
| Depth of Field(mm) | ±76.5@F16 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 831±5 | ||||
| Length (mm) | 480.5 | Weight(kg) | 24.7 | ||||
| Measured Depth of Field (mm) | 16 | Filter Screw Size | M285x1.0 | ||||
| Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 196.3x157.4 | |||||
| 4/3" PYTHON 12K (18.43x13.82) | 202.5x151.9 | ||||||
| 4/3" CMV8000 (18.48x13.73) | 203.1x150.9 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-258-xW-y | |||||
| Beam Diameter 258mm | |||||||
