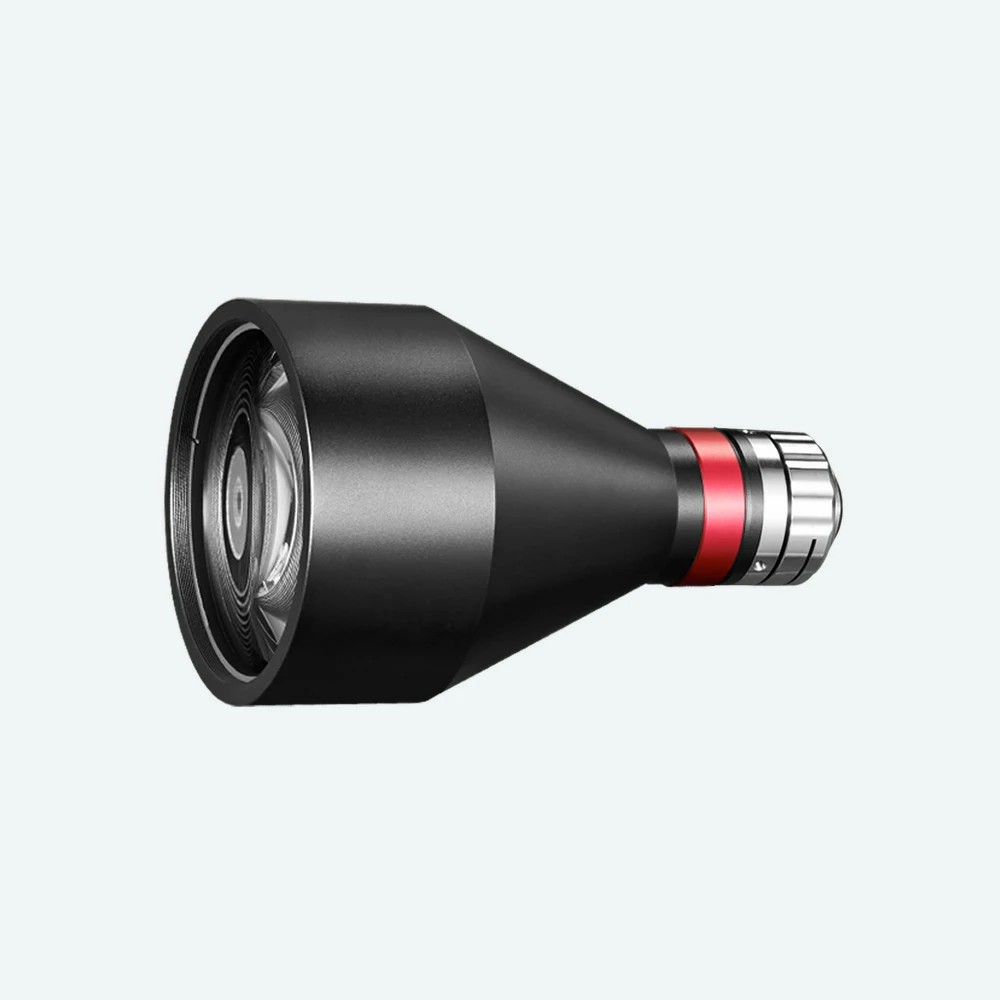

| Model NO. | DTCM120-90-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.089 | Working Distance(mm) | 208±3 | ||||
| NA | 0.0106 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 90 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >210 | ||||
| Depth of Field(mm) | ±55.5@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 432±3 | ||||
| Length (mm) | 206.2 | Weight(kg) | 1.6 | ||||
| Measured Depth of Field (mm) | 11 | Filter Screw Size | M111x0.75 | ||||
| Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 64.0x48.1 | |||||
| 1/2.3" 9J003 (6.44x4.62) | 72.4x51.9 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-90-xW-y | |||||
| Beam Diameter 90mm | |||||||
